ZFIN Image: Yang et al., 2022, Fig. 4


Figure Caption

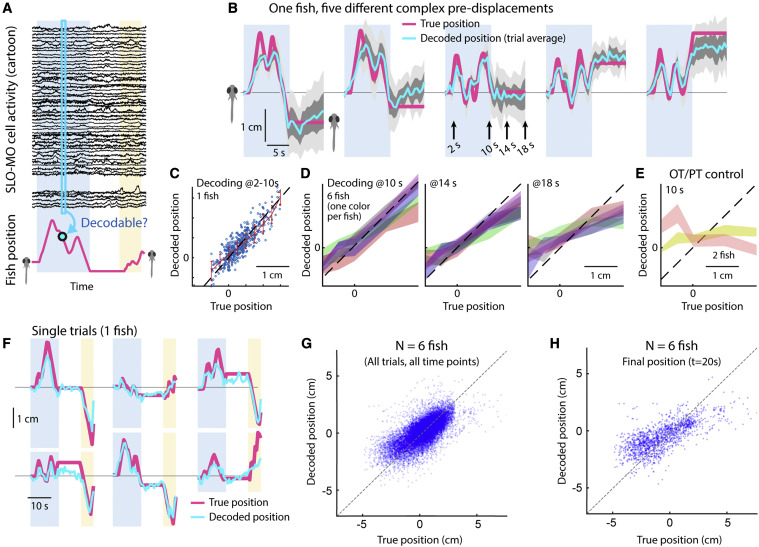

Fig. 4 Decoding self-location from SLO-MO neuronal activity

(A) Schematic of self-location decoding from SLO-MO population activity (cartoon data).

(B) Decoding averages of complex location trajectories in pre-displacement and delay periods of stochastic displacement assay (dark gray: standard error [SEM], light gray: standard deviation [SD]). (Fish icons enlarged, not to scale.)

(C) Decoding performance throughout pre-displacement period of example fish.

(D) Decoding performance at start, middle, and end of delay period across N = 6 fish, showing gradually declining performance as SLO-MO memory decays over many seconds (colors: SEM for each fish).

(E) Decoder trained on midbrain visual neurons performs poorly.

(F) Example decoding of single trials, including first swim period.

(G) Decoding self-location during entire trial across N = 7 fish, r = 0.54, p < 0.01.

(H) Performance of decoding self-location at end of swim period (at t = 20 s), r = 0.68, p < 0.01.
