Fig. 6

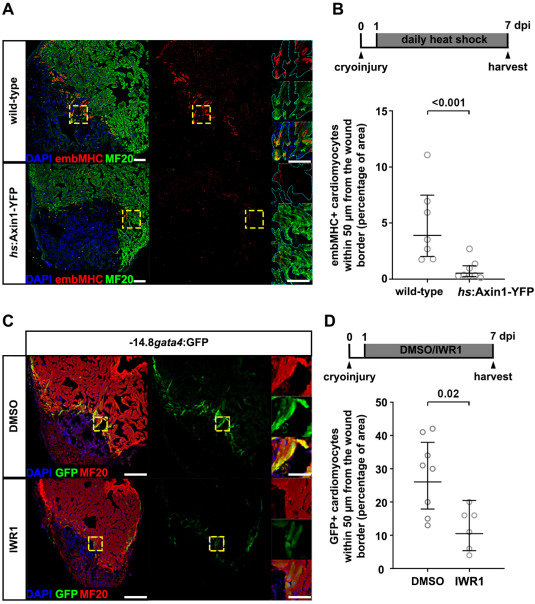

Fig. 6. Inhibition of Wnt/β-catenin signaling prevents cardiomyocyte dedifferentation. (A) embMHC and MF20 immunostaining on cryoinjured hearts of hs:Axin1-YFP fish and wild-type siblings, heat-shocked daily from 1 to 7 dpi. n (hearts) = 7 (wild-type), 8 (hs:Axin1-YFP). In the magnified view, the cyan dotted lines represent the outline of the MF20⁺ cardiomyocyte area. Scale bars, 100 μm (overview), 10 μm (magnification). (B) Quantification of the embMHC⁺MF20⁺/MF20⁺ area in the 50 μm wound borderzone of images shown in (A). Error bars represent CI 95%. Unpaired Welch's unequal variances t-test. (C) MF20 and GFP immunostaining on cryoinjured hearts of −14.8gata4:GFP fish treated with DMSO or IWR1 from 1 to 7 dpi. n = 8 (DMSO), 6 (IWR1). Scale bars, 100 μm (overview), 10 μm (magnification). (D) Quantification of GFP⁺MF20⁺/MF20⁺ area in the 50 μm wound borderzone of images shown in (C). Error bars represent CI 95%. Unpaired Welch's unequal variances t-test.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 481, Bertozzi, A., Wu, C.C., Hans, S., Brand, M., Weidinger, G., Wnt/β-catenin signaling acts cell-autonomously to promote cardiomyocyte regeneration in the zebrafish heart, 226-237, Copyright (2021) with permission from Elsevier. Full text @ Dev. Biol.
