Figure 4

ID
ZDB-IMAGE-221214-186
Source
Figures for Burgoyne et al., 2022
Figure Caption

Figure 4

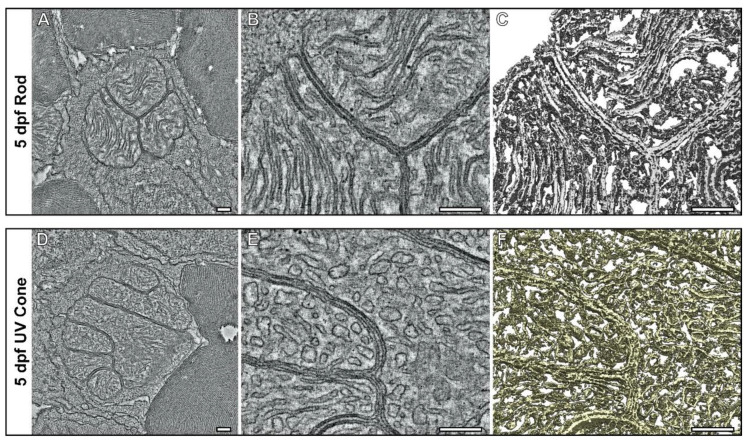

Tomograms show the compact association of mitochondria within the inner segments of UV cone and rod photoreceptors at 5 dpf. (AC) Tomography data of rod and (D,E) UV cone inner segment mitochondria. (A,D) Single slices from the tomograms with (B,E) higher magnification views. (CF) Surface rendering of the tomography data allows the architecture of the mitochondria to be assessed in 3D. The rod has elongated and tightly associated cristae membranes, whereas the UV cone has cristae that are wider. Scale bars = 250 nm.
