Fig. 2

ID
ZDB-IMAGE-221123-17
Genes
Source
Figures for Fowler et al., 2021
Figure Caption

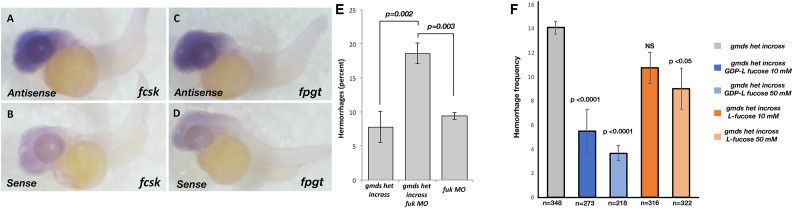

Fig. 2 Salvage pathway genes contribute to vascular integrity. The ​fcsk ​gene is expressed ubiquitously in the head of wildtype 48 hpf embryos (A) compared to the mild background staining in the wildtype control embryos using a sense probe (B). The ​fpgt ​gene was expressed ubiquitously in the head of wildtype 48 hpf embryos (C) compared to the mild background staining in the wildtype control embryos using a sense probe (D). The recorded cerebral hemorrhaging rates of embryo clutches derived from ​gmds ​heterozygous matings and control wildtype crosses with or without ​fcsk ​morpholino (E), showing that the ​fcsk ​morpholino increase hemorrhage rates. (F), results of rescue experiments using GDP-fucose and L-fucose, demonstrating that both conditions can rescue hemorrhage rate. Statistical significance was calculated using a chi-squared test with Yate's correction. Error bars represent standard error of the mean hemorrhage rate from three independent experiments.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 480, Fowler, G., French, D., Rose, A., Squires, P., Anecito da Silva, C., Ohata, S., Okamoto, H., French, C.R., Protein fucosylation is required for Notch dependent vascular integrity in zebrafish, 62-68, Copyright (2021) with permission from Elsevier. Full text @ Dev. Biol.
