Figure 5—figure supplement 1.

ID
ZDB-IMAGE-221118-194
Source
Figures for Ding et al., 2022
Figure Caption

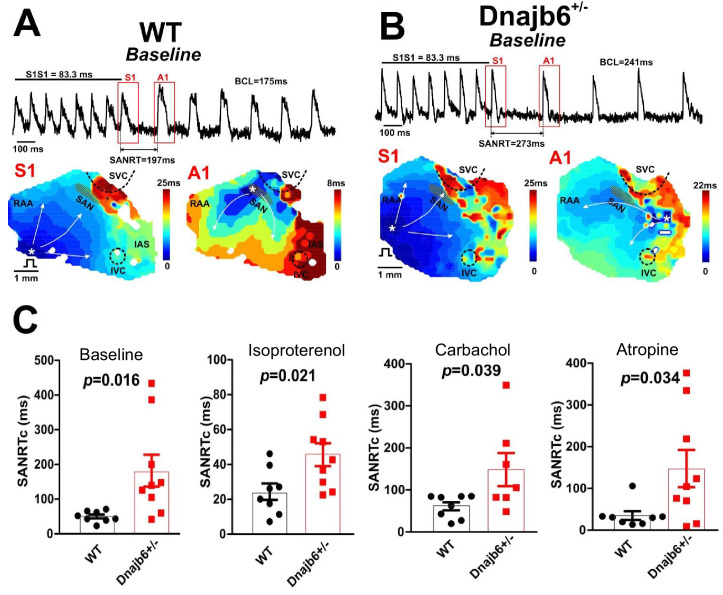

Figure 5—figure supplement 1. Sinus node recovery time was prolonged in the Dnajb6+/- mice.

(A–B) Representative activation maps reconstructed for the last pacing stimulus (S1) and the first spontaneous post-pacing atrial beat (A1) during SAN recovery time (SANRT) measurements are shown. A site of the earliest atrial activation is labeled by a white asterisk. In Dnajb6+/- group, unlike WT, the first spontaneous post-pacing atrial beat (A1) originated from an ectopic location outside of the anatomically and functionally defined SAN area. (C) Summarized data for corrected SANRT (+/-) measured during different autonomic stimulations is shown. N=7–9 mice per group, unpaired student’s t-test.
