Fig. 8

ID
ZDB-IMAGE-220304-51
Genes
Source
Figures for Aman et al., 2021
Figure Caption

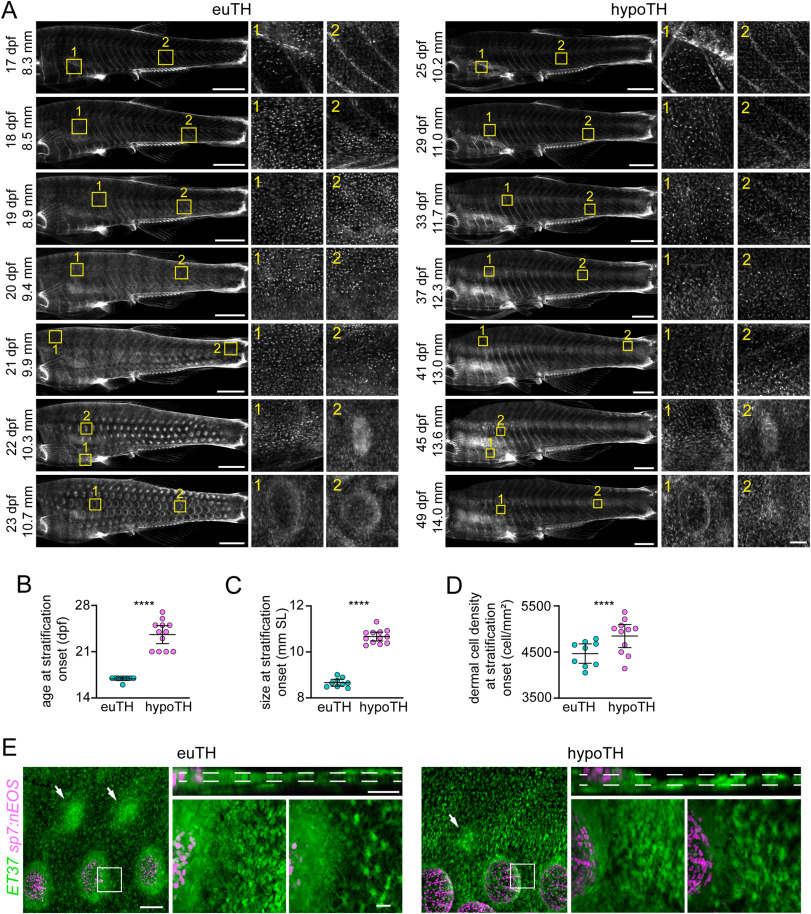

Fig. 8 TH regulates dermal migration. (A) In-toto imaging of dermis in ET37:EGFP transgenics revealed a transition between a single-layered primary hypodermis to scaled skin over seven days [17–23 days post fertilization (dpf)]. Beginning at 17 dpf migratory dermal cells were apparent over the ribs (inset 1) but not above the anal fin (inset 2). A similar distribution was observed in hypoTH fish at 25 dpf. Dermal migration occurred in a wave that spread first posteriorly and then dorsally in both euTH and hypoTH fish, followed by scale papilla formation. Although the same qualitative sequence occurred in hypoTH individuals, it progressed more slowly. (B) Dermal migration was initiated in significantly older hypoTH fish compared with euTH controls (t19 ​= ​9.19, p ​< ​0.0001; n ​= ​9 euTH, 12 hypoTH). (C) Owing to delayed initiation, body surface area was significantly larger in hypoTH fish at the onset of dermal migration relative to controls (t19 ​= ​18.45, p ​< ​0.0001). (D) Density of primary hypodermal cells at the onset of dermis migration was more variably and slightly increased in hypoTH fish compared with euTH controls t18 ​= ​2.56, p ​= ​0.02). (E) dSFCs differentiated in the superficial dermis in both euTH and hypoTH fish indicated by sp7:nucEOS expression (magenta). Bars in B–D, means ​± ​95% CI. Scale bars, (A) 500 ​μm for whole skin overviews or 100 ​μm for details, (E) 100 ​μm low magnification and 20 ​μm for details.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 477, Aman, A.J., Kim, M., Saunders, L.M., Parichy, D.M., Thyroid hormone regulates abrupt skin morphogenesis during zebrafish postembryonic development, 205-218, Copyright (2021) with permission from Elsevier. Full text @ Dev. Biol.
