Figure 2

Figure 2

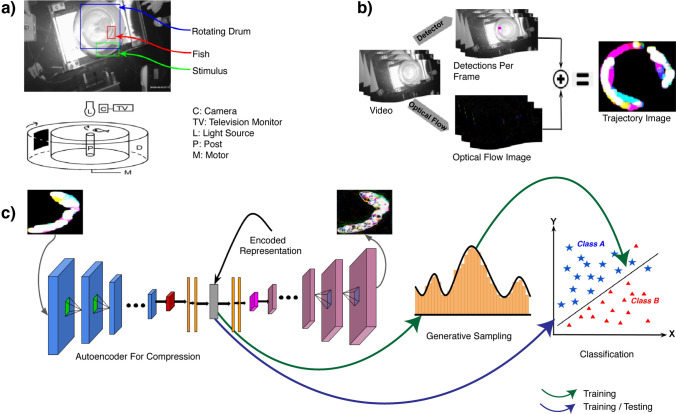

An overview of the behavioral experiments and tool to analyze them. (a) Experimental setup for recording behavioral visual sensitivity in zebrafish in response to olfactory and TN stimulation. The drum rotation in the lower diagram is clockwise, and the direction of the swimming fish is initially counterclockwise. The fish displayed escape responses to the approach of the black segment. Upon the black segment coming into view, a fish will immediately turn and swim away (in the clockwise direction in this example). Abbreviations used in the lower diagram: C, camera; D, rotating drum; L, light source; M, motor; P, post; TV, television monitor. (b) The process for generating trajectory images for zebrafish from videos. This shows how the first two steps of the overall pipeline (see Fig. 1) are combined to form a trajectory image. We use automatically detected regions of interest to create a mask for the fish such that only the pixels representing the fish in the tank are illuminated for dense optical flow estimation. All the frames are combined thereafter to generate a single trajectory image for the entire video. (c) Data compression using autoencoders, generative sampling and a binary classifier for behavior analysis for fish. This shows how the remaining three steps of the overall pipeline fit together. Since the raw features from the trajectory images can be high-dimensional, we use compression via autoencoders to limit the dimensionality of trajectory images. The encoded representations can be used as-is for classifier training and testing, or as priors for generative sampling before training a classifier.
