Fig 1

ID
ZDB-IMAGE-200718-4
Source
Figures for Deveau et al., 2020
Figure Caption

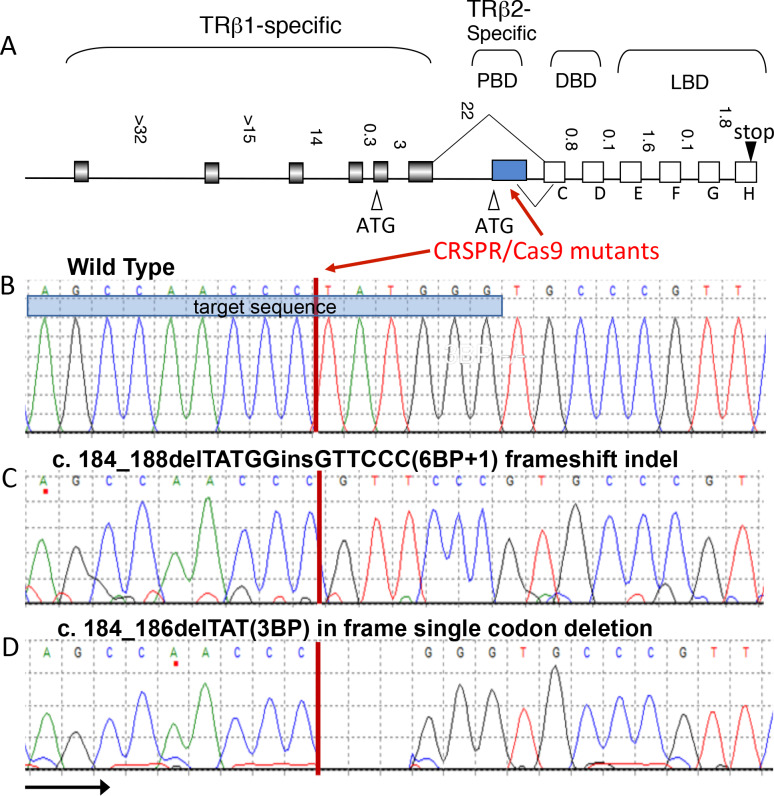

Fig 1 Two CRISPR mutant lines.

(A) Both mutations are in the first exon of the trβ2 isoform within the N-terminus in the protein binding domain (PBD). Modified from Jones et al. (2003) [14] with permission of Thyroid, Mary Ann Liebert, Inc., publishers, New Rochelle, NY. (B-D) Both mutations targeted the TAT codon resulting in a frameshift indel (6BP+1) and an in-frame codon deletion (3BP). DNA binding domain (DBD), ligand binding domain (LBD).
