Figure 3—figure supplement 2.

ID: ZDB-IMAGE-200530-8
Publication: Williams et al., 2020 - Nodal and Planar Cell Polarity signaling cooperate to regulate zebrafish convergence and extension gastrulation movements
All Figures: Figures for Williams et al., 2020


Figure Caption

Figure 3—figure supplement 2. Cell divisions within <italic>ndr2</italic>-expressing explants.

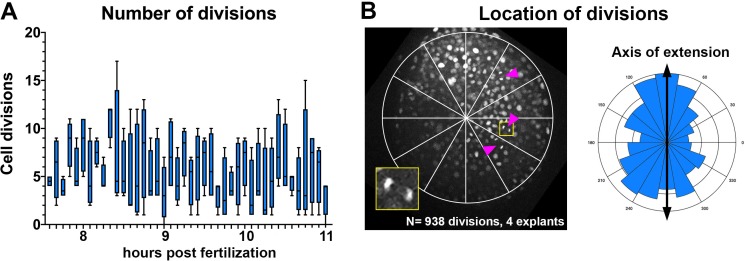

(A) Manually annotated cell divisions (per explant) within four live explants from WT embryos co-injected with H2B-RFP and 10 pg ndr2 RNA. Measurements were taken at 5 min intervals from 7.5 to 11 hpf. Boxes represent the 25^th to 75^th percentiles, whiskers are minimum and maximum vales, bars are median values. (B) Left: representative image of cell divisions (arrowheads) within an explant co-expressing H2B-RFP and ndr2. The inset is enlarged from the region in the yellow square. Right: radial histogram of locations of all cell divisions (with respect to the center of each explant) detected within four ndr2-expressing explants between 7.5 and 11 hpf, with 90°/270° representing the axis of extension.
