Figures for Wierson et al., 2020

Figure Caption/Comments:

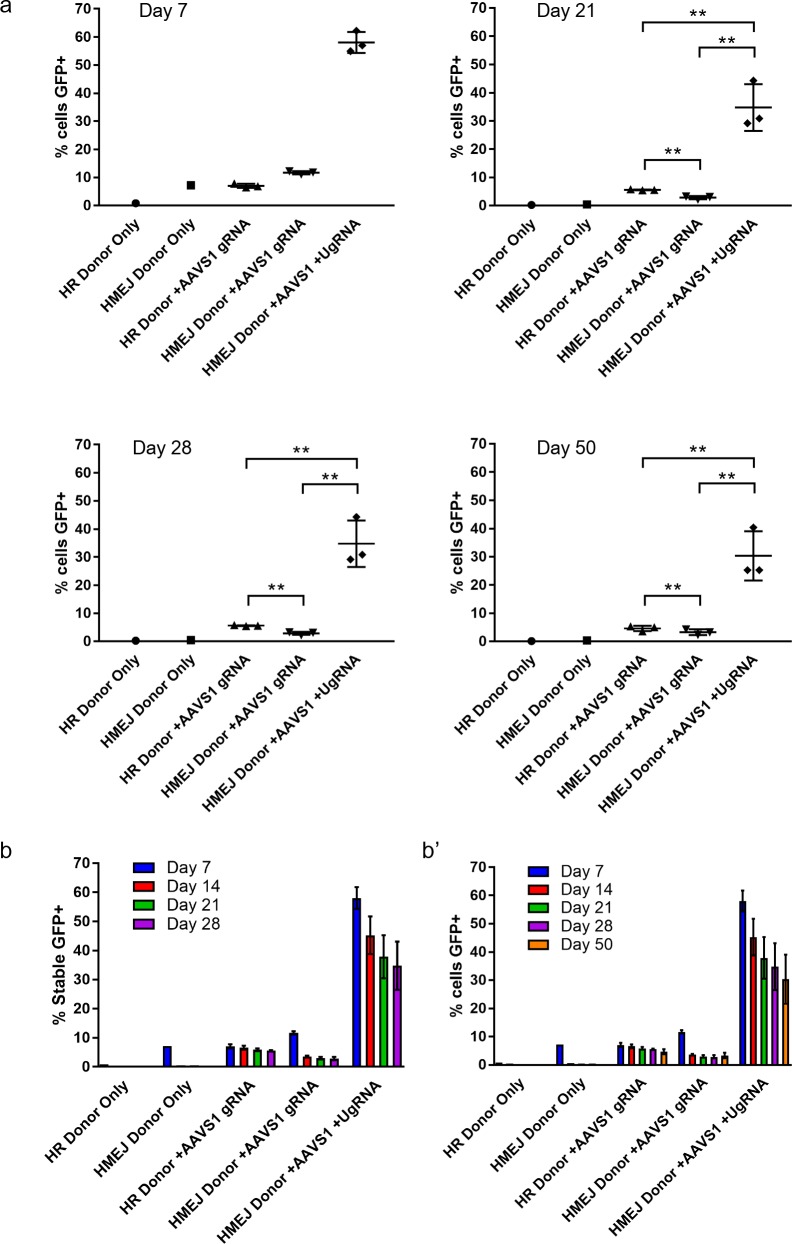

Figure 6—figure supplement 1. HMEJ-mediated targeted integration of an MND:GFP reporter at the <italic>AAVS1</italic> locus in human K-562 cells.

FACs sorted percent of GFP+ cells out of total K-562 cells at day 7, 21, 28, and 50. (b) Summary data for percent of stable GFP+ K-562 cells from day 7, 14, 21, and 28. (b’) Summary data for percent of total cells GFP+ from day 7, 14, 21, 28, and 50. Data represents mean +/- s.e.m. of 3 independent targeting experiments. p values calculated using two-tailed unpaired t-test.
