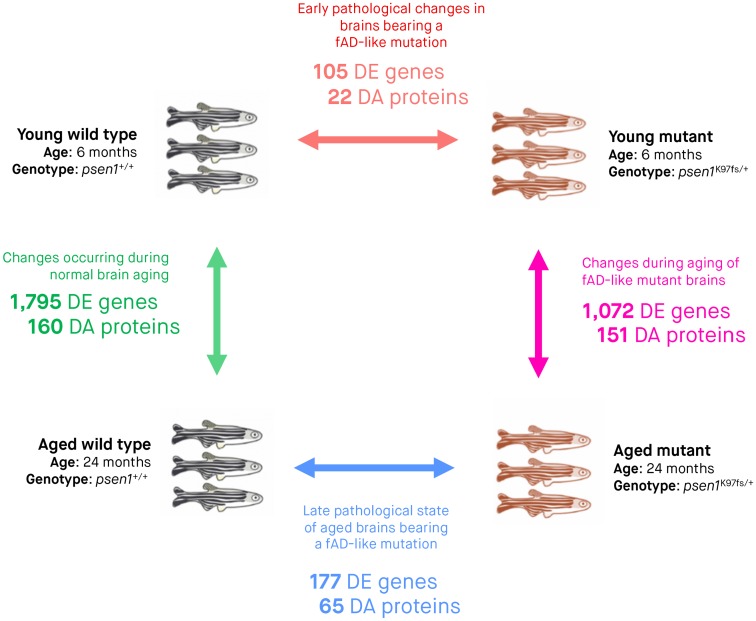

Fig 2 Summary of experimental groups, differentially expressed (DE) genes and differentially abundant (DA) proteins.

Three biological replicates (entire zebrafish brains) were subjected to RNA-seq and LC-MS/MS for each of the four experimental conditions. Arrows indicate pairwise comparisons (to identify DE genes and DA proteins) between experimental conditions. The numbers of DE genes and DA proteins determined from RNA-seq and LC-MS/MS analyses are indicated underneath the arrow for each comparison. We considered genes to be DE and proteins to be DA if the False Discovery Rate [FDR]-adjusted p-value of their moderated t-test (limma) was below 0.05. All zebrafish of the same age are siblings raised in the same tank.
