ZFIN Image: Copmans et al., 2019, Figure 2


Figure Caption

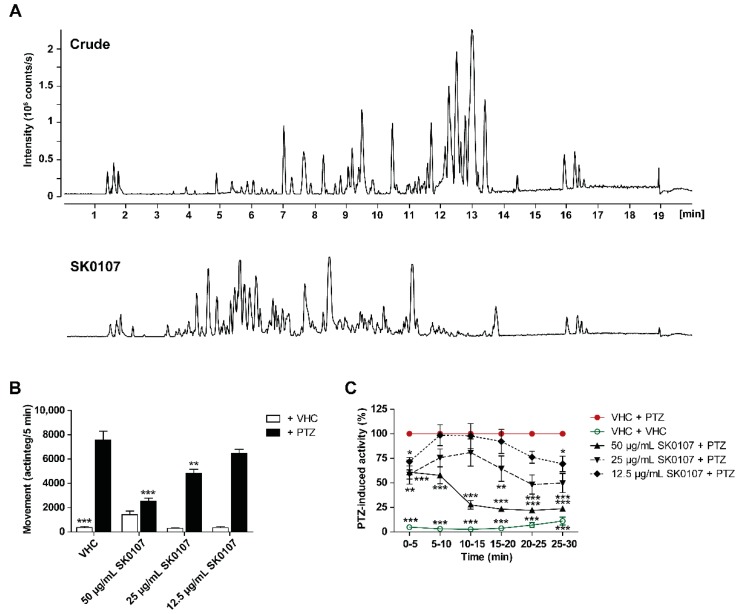

Figure 2

Antiseizure hit SK0107. (A) Aspergillus insuetus IBT 28443 cultivated on czapek yeast extract agar (CYA) and yeast extract sucrose agar (YES) media for 9 days at 25 °C in the dark. Base peak chromatograms of the crude extract and bioactive fraction SK0107 in positive electrospray ionization mode. (B,C) Antiseizure activity of SK0107 in the zebrafish pentylenetetrazole (PTZ) seizure model after 2 h of incubation. PTZ-induced seizure-like behavior is expressed as mean actinteg units per 5 min (±SEM) during the 30-min recording period (B) and over consecutive time intervals (C). Means are pooled from three independent experiments with each 12 replicate wells per condition. Statistical analysis: (B) one-way ANOVA with Dunnett’s multiple comparison test, (C) two-way ANOVA with Bonferroni posttests (GraphPad Prism 5, San Diego, CA, USA). Significance levels: * p ≤ 0.05; ** p ≤ 0.01; *** p ≤ 0.001. Abbreviation: vehicle, VHC.
