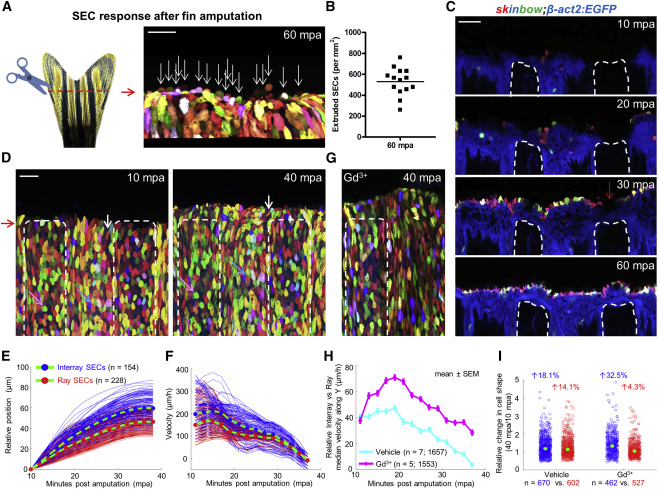

Ray and Interray Epithelial Sheets Respond Distinctly to Amputation Injury

(A) (Left) Schematic of fin amputation. (Right) Confocal image indicating extruded SECs at the amputation plane by 60 mpa. A three-dimensional image was reconstructed from z stacks of confocal images, using Imaris to facilitate counting of extruded cells. White arrows point to extruded cells along the amputation plane. Scale bar, 50 μm.

(B) Quantification of extruded SECs at the injury site at 60 mpa (n = 14 regions from seven animals).

(C) Time-lapse images of optical sections at the same z position post amputation. Images were captured every 10 min starting at 10 mpa. White dashed lines outline fin rays. Red arrow indicates that the fin ray stump is covered first by basal and suprabasal cells, closed trailed by SECs. Scale bar, 50 μm.

(D) Confocal images captured at 10 and 40 mpa. White dashed lines outline regions covering fin rays. Images were recorded every 2 min for 30 min starting at 10 mpa. White, pink, and blue arrows point to individual cells at 10 and 40 mpa. Scale bar, 50 μm. The red arrow indicates the plane of amputation.

(E) Position of single cells perpendicular to the amputation plane with respect to starting position. Average trajectories are plotted in green lines with blue (interray SECs) and red (ray SECs) filled circles.

(F) Velocities were obtained by single-cell tracking as finite differences.

(G) A confocal image captured at 40 mpa from animals treated with gadolinium (Gd³⁺). White dashed lines outline regions covering fin rays.

(H) Relative velocity of interray with respect to ray SECs in vehicle-treated (cyan, n = 7) versus Gd³⁺-treated animals (magenta, n = 5) averaged over all trajectories first and then over different samples. Data are plotted as mean ± SEM. Gd³⁺ treatment increases differential migration rates of interray SECs with respect to ray SECs. In addition, migration persists in Gd³⁺-treated animals beyond 40 min.

(I) Quantification of relative changes in cell shape for interray SECs (blue) and ray SECs (red) in either vehicle- or Gd³⁺-treated animals. Cell shape was determined by aspect ratio, which was obtained as the major to minor axis ratio for each cell. The aspect ratio of individual cells at 40 mpa was normalized to the average value at 10 mpa to show relative change. Total numbers of analyzed trajectories are indicated below each point cloud, combined from seven (vehicle) and five (Gd³⁺) animals. Mann-Whitney test of vehicle versus Gd³⁺interray SECs (blue circles) yielded a significant difference in the medians (green dots) of the two samples (p = 0.0038).
