Figure Caption

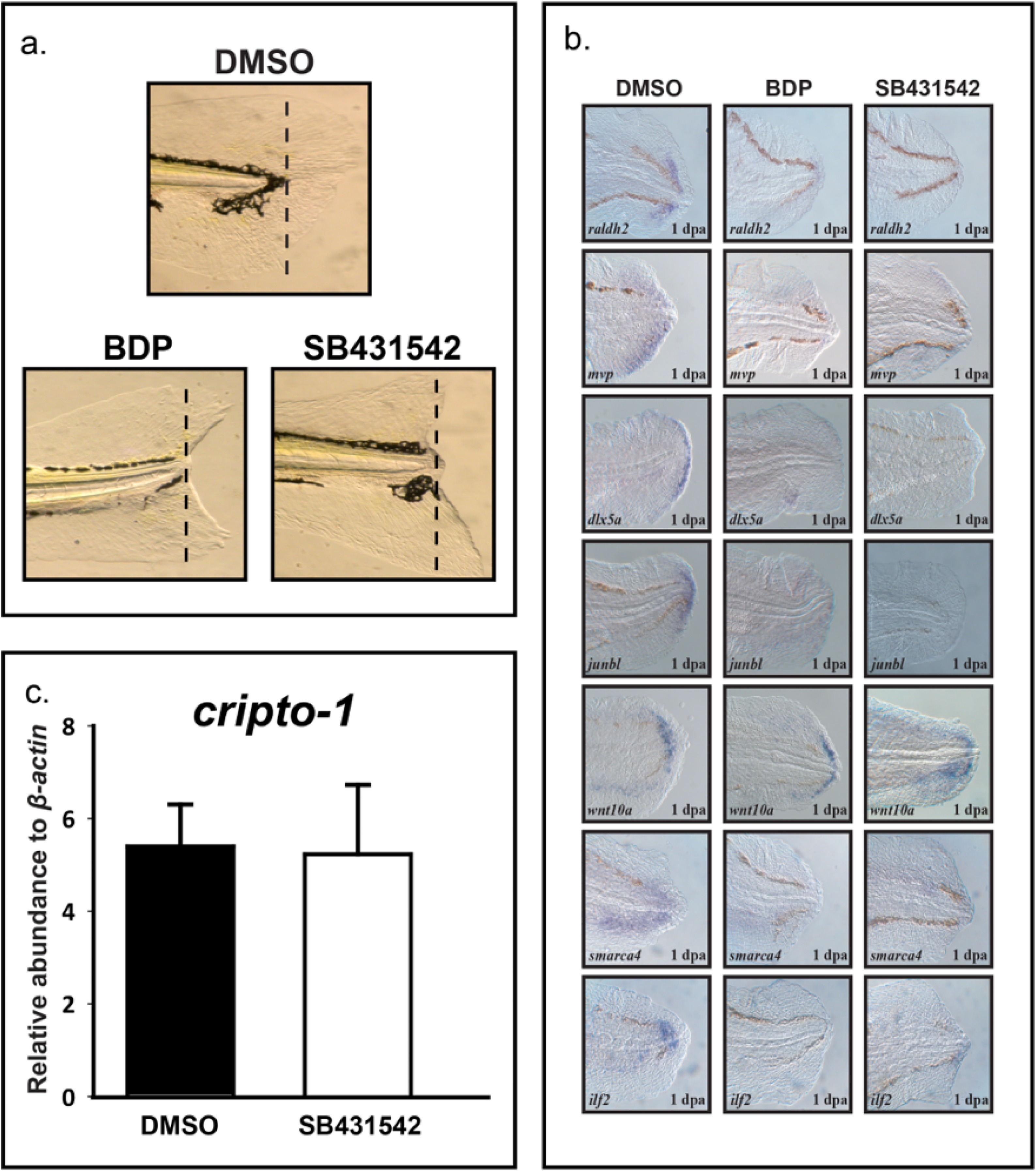

Fig. 3
BDP and SB431542 impact larval regeneration. a) Caudal fins of 2 dpf (days post-fertilization) larvae were amputated and exposed to vehicle (0.1% DMSO), 1 μM beclomethasone dipropionate (BDP), or 100 μM SB431542. Regenerative progression was evaluated and pictures were taken at 3 dpa (days post-amputation). b) In situ localization of dlx5a, junbl, wnt10a, ilf2, smarca4, raldh2 and mvp in larvae exposed to BDP and SB431542 demonstrated a similar expression pattern. c) Exposure to SB431542 did not significantly alter expression of cripto-1.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Toxicol Rep
