Figure Caption

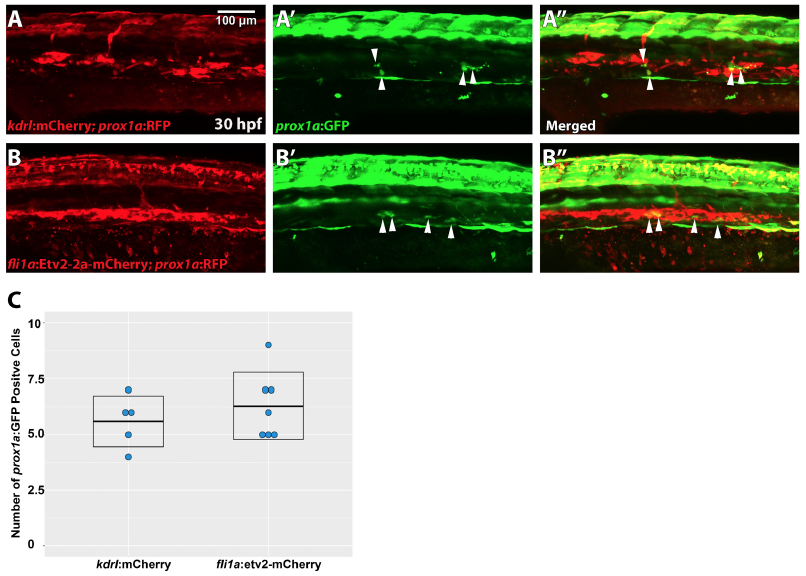

Fig. S6
Vascular specific overexpression of Etv2 does not result in expansion of lymphatic progenitors.
Injection of fli1a:etv2-2a-mCherry (B-B’’) does not result in expansion of prox1a:GFP+ cells (arrowheads) etv2 at 30hpf (5.6±0.5, n=5) compared to control injection of kdrl:mCherry (A-A’) (6.3±0.6, n=7). Quantification of number of prox1a+ cells in the vasculature (C) (two-tailed Student’s t test p= 0.41). Mean±SEM is shown. Experiment has been repeated twice.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 440(1), Davis, J.A., Koenig, A.L., Lubert, A., Chestnut, B., Liu, F., Desai, S.P., Winkler, T., Pociute, K., Choi, K., Sumanas, S., ETS transcription factor Etsrp / Etv2 is required for lymphangiogenesis and directly regulates vegfr3 / flt4 expression, 40-52, Copyright (2018) with permission from Elsevier. Full text @ Dev. Biol.
