Figure Caption
Fig. S1

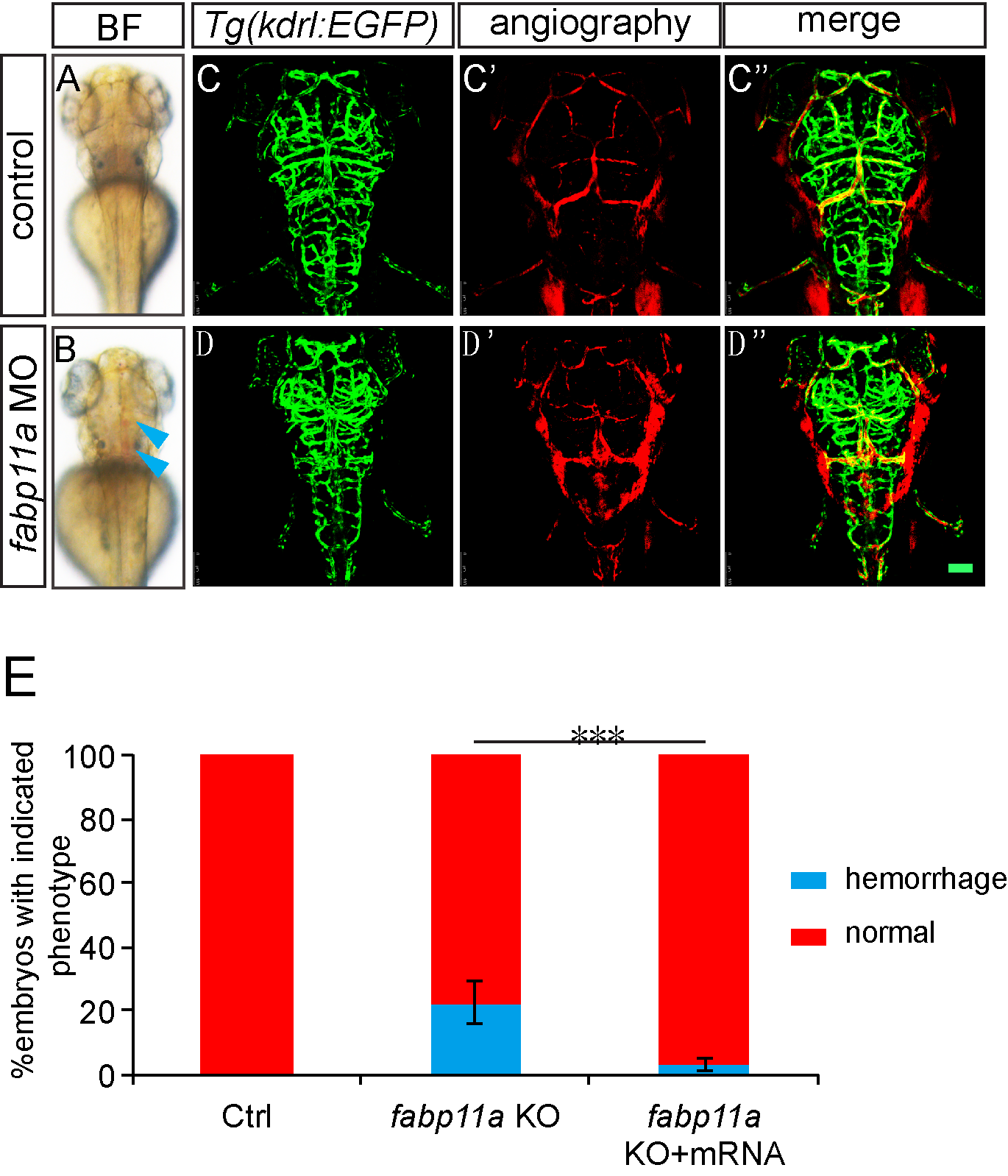

fabp11a knockdown leads to zebrafish brain hemorrhage. (A, B) Microscopy analysis of control embryos and fabp11a morphants in bright field at 72 hpf. Blue arrowheads indicate hemorrhage in zebrafish head. (C-D'') Confocal imaging analysis of fabp11a morphants and control Tg(kdrl:EGFP) embryos intracardiac injected with Rhodamine-conjugated dextran at 72 hpf. (E) Fabp11a mRNA injection rescued the blood vessel integrity defects caused by fabp11a deficiency, χ2 test, ***P<0.001. Scale bar: 20 µm.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Front. Physiol.
