Figure Caption

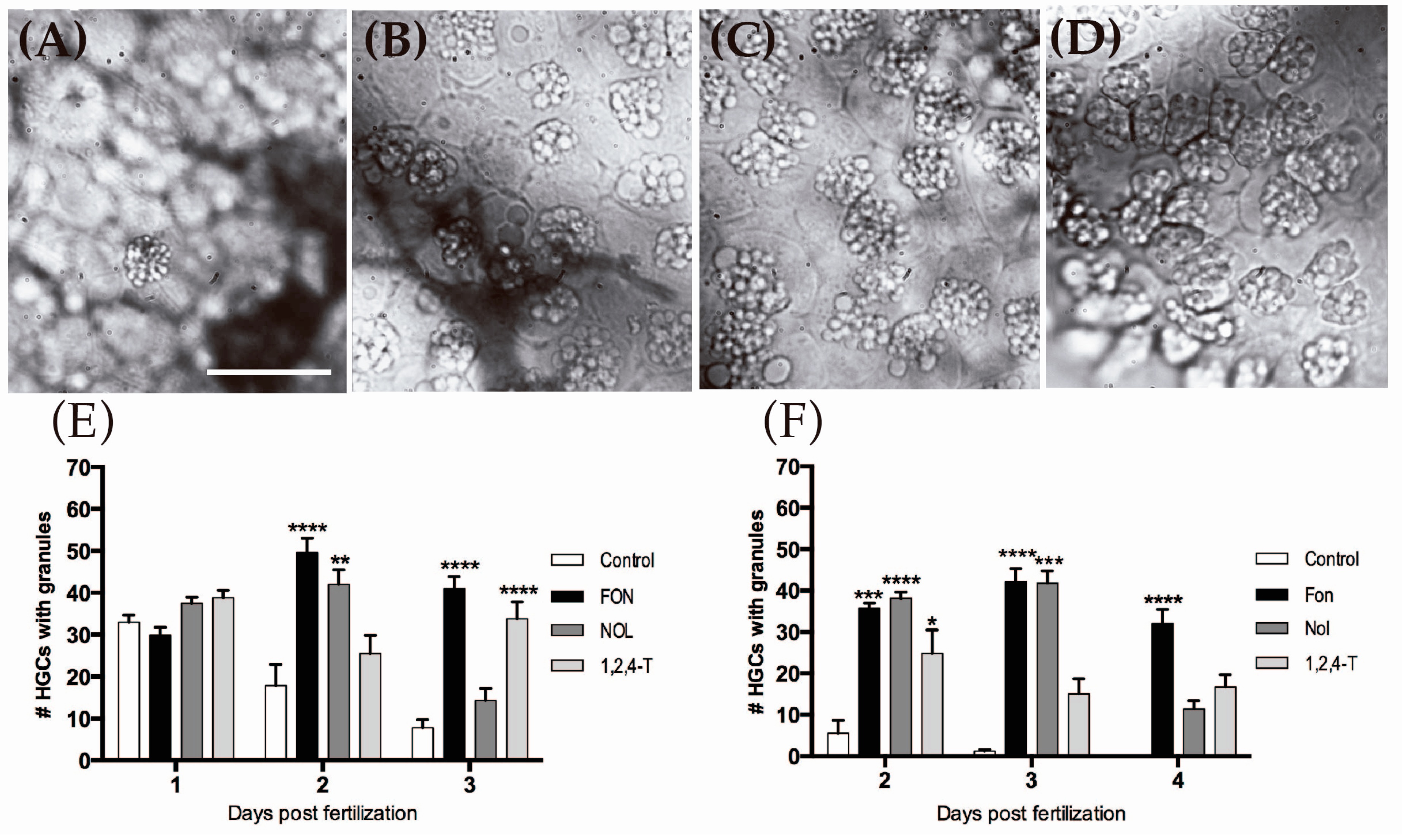

Fig. 3
Triazoles prevent secretion of the HGC granules. HGCs with granular content of representative 50–60 hpf (A) control, (B) FON, (C) NOL, and (D) 1,2,4-T-treated animals; (E,F) The number of HGCs containing granules in embryos exposed to a high concentration of triazoles for 48 h starting at blastula (E), or 1 dpf (F) stages, was counted and averaged. Scale bar: 20 µm. Kruskal-Wallis, Dunn’s multiple comparisons test (statistical significance is compared with controls * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Mol. Sci.
