Fig. 3

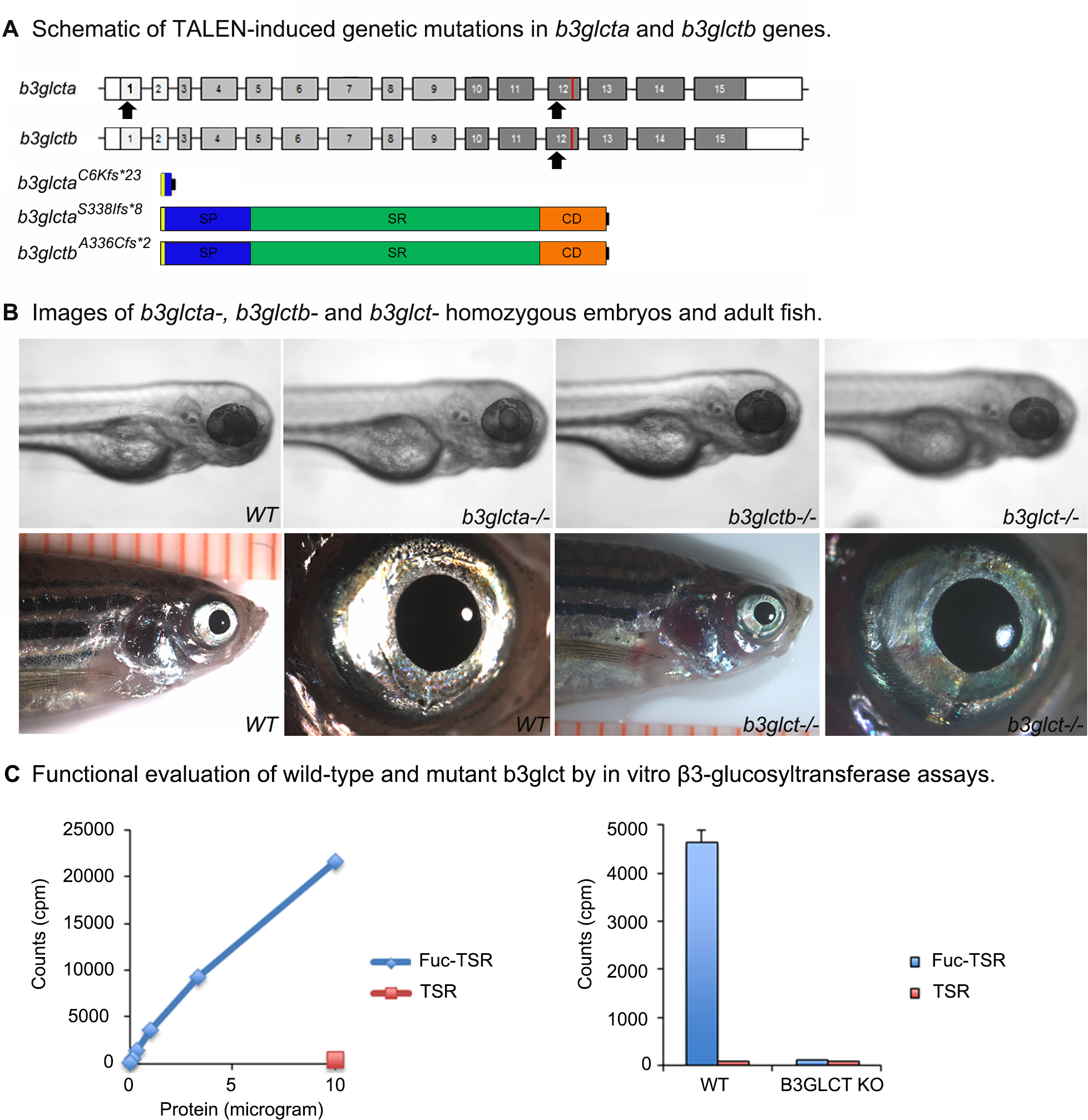

Genetic disruption of b3glct.

(A) Schematic of b3glct genes indicating TALEN target sites (exon 1 and 12 for b3glcta and exon 12 for b3glctb, black arrows). The predicted protein product resulting from TALEN mediated disruption is shown. Editing events in the first exon of b3glcta are predicted to disrupt nearly the entire coding region of the transcript. For both b3glcta and b3glctb, editing in the 12th exon is predicted to result in loss of most of the catalytic domain including the catalytic core and KDEL-like ER retention signal. Blue (SP)- Signal Peptide, Green (SR)- Stem Region, Orange (CD)- Catalytic Domain. (B) Images of zebrafish embryos at 5-dpf and adult zebrafish showing no gross morphological defects associated with loss of b3glct. (C) Functional evaluation of wild-type and mutant b3glct by in vitro β3-glucosyltransferase assays. Left panel- the endogenous β3-glucosyltransferase activity toward O-fucosylated TSR3 is dependent on the amount of protein in the wild type zebrafish homogenate; control reaction with 10 μg homogenate was performed using unmodified TSR3. Right panel- the endogenous β3-glucosyltransferase activity toward O-fucosylated TSR3 in the homogenate of double homozygous b3glct embryos is profoundly reduced compared with that in the wild type zebrafish homogenate; control reactions were performed using unmodified TSR3. Assays were performed in triplicate. Error bars indicate s.d.
