Fig. S7
Overexpression of nrg2a under control of a myocardial specific promoter induces cardiomyocyte bilayering in the ventricle by 46 hpf

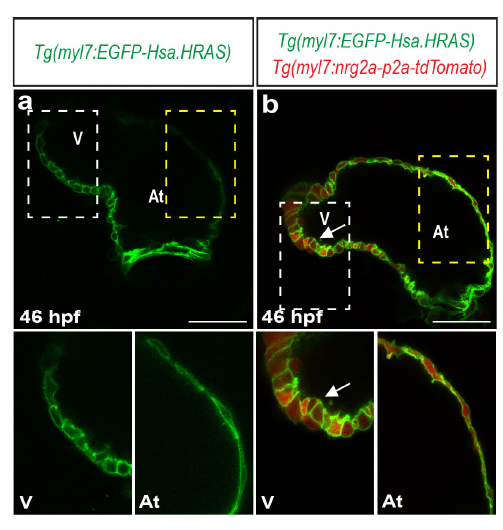

(a-b) 2D ventral views (mid-sagittal sections) of 46 hpf Tg(myl7:EGFP-Hsa.HRAS) (a) or Tg(myl7:EGFP-Hsa.HRAS);Tg(myl7:nrg2a-p2a-tdTomato) (b) hearts; Magnified images of dashed boxes are shown below a and b; arrows point to bilayered wall; V: ventricle, At: atrium; scale bars, 50 μm.
