ZFIN ID: ZDB-IMAGE-170222-101
Figures for Mayrhofer et al., 2017

Genes:

Figure Caption/Comments:

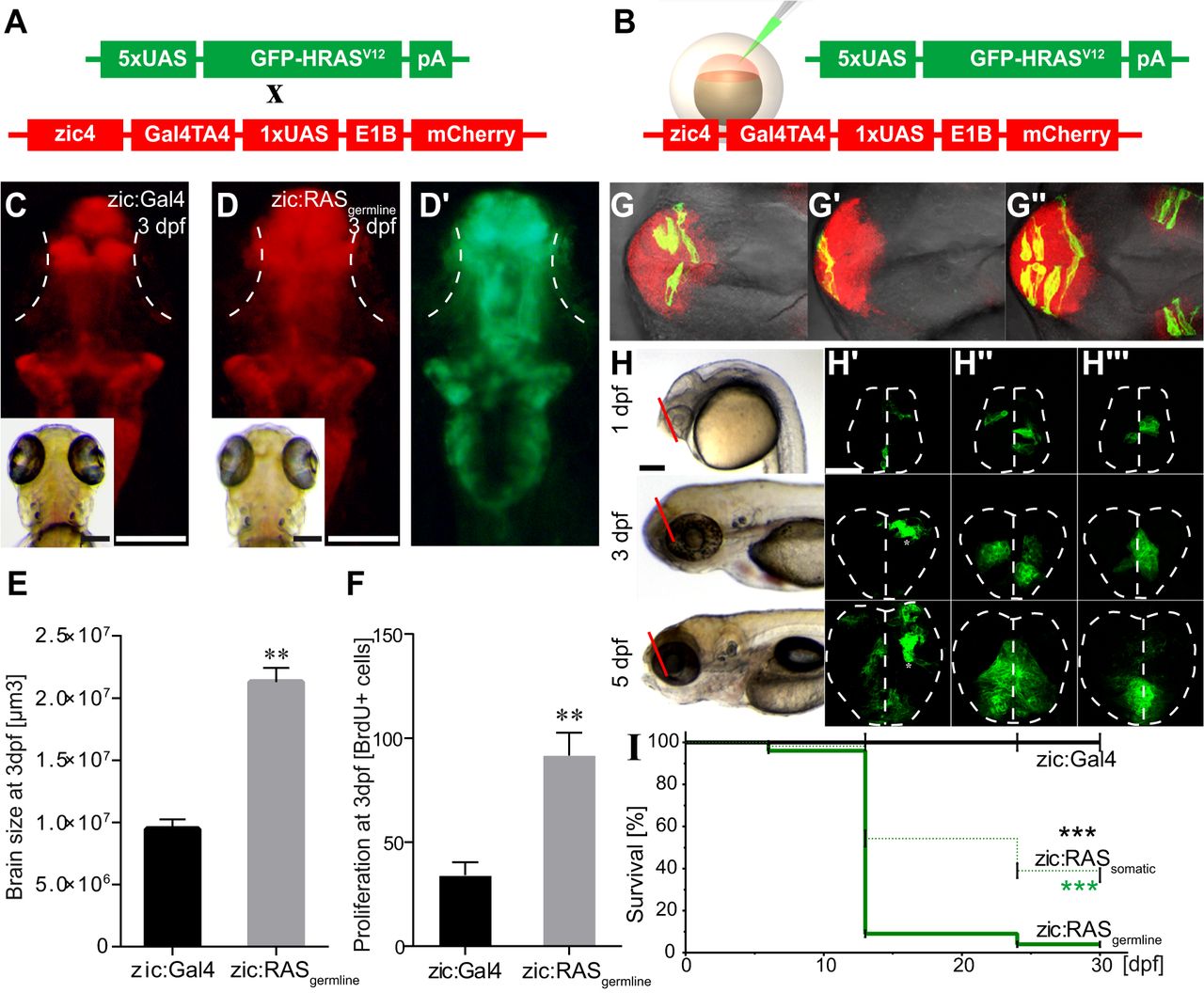

Fig. 1

Oncogenic RAS induces proliferation of neural progenitor cells, clonal expansion and reduced survival. (A,B) Schematic representation of tumour induction through (A) the cross between zebrafish lines carrying the indicated transgenes or (B) the injection of the oncogenic construct (green) into zic:Gal4 embryos to express UAS:GFP-HRASV12 specifically in the brain. (C,D) Dorsal view of representative 3 dpf images of larvae showing the telencephalon in a control larva (C, zic:Gal4, mCherry expression) compared with that of an oncogenic larva (D, zic:RASgermline, mCherry expression; D′, zic:RASgermline, UAS:GFP-HRASV12 expression), white dotted lines mark the eyes. (E) Quantification of brain size reveals a doubling in size of the zic:RASgermline-expressing tissue. (F) Counting of BrdU-positive cells in the telencephalon of 3 dpf larvae reveals doubling in the number of proliferating cells in zic:RASgermline versus zic:Gal4 controls. (G-G″) Dorsal view of three 1 dpf zic:RASsomatic larvae showing individual clones expressing UAS:GFP-HRASV12. (H-H″′) Lateral bright-field and coronal confocal images of the telencephalon of three live zic:RASsomatic larvae (plane of focus indicated by red lines in H) at 1 dpf, 3 dpf and 5 dpf revealing clonal expansion of oncogene-expressing cells in the same larvae from 1 to 5 dpf. White dotted lines mark the outline of the brain. (I) Survival curve of zic:RASsomatic larvae (green dashed line; n=166) compared with zic:Gal4 controls (black line, black asterisk; n =105) and zic:RASgermline larvae (green solid line, green asterisk; n =255). Data are represented as mean±s.d. **P<0.03, ***P<0.001. Scale bars: 500 µm in C,D; 500 µm in H; 50 µm in H′.

Figure Data:
Acknowledgments:
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.
