ZFIN ID: ZDB-IMAGE-161230-7
Figures for Nichols et al., 2016

Genes:

Figure Caption/Comments:

Fig. S1

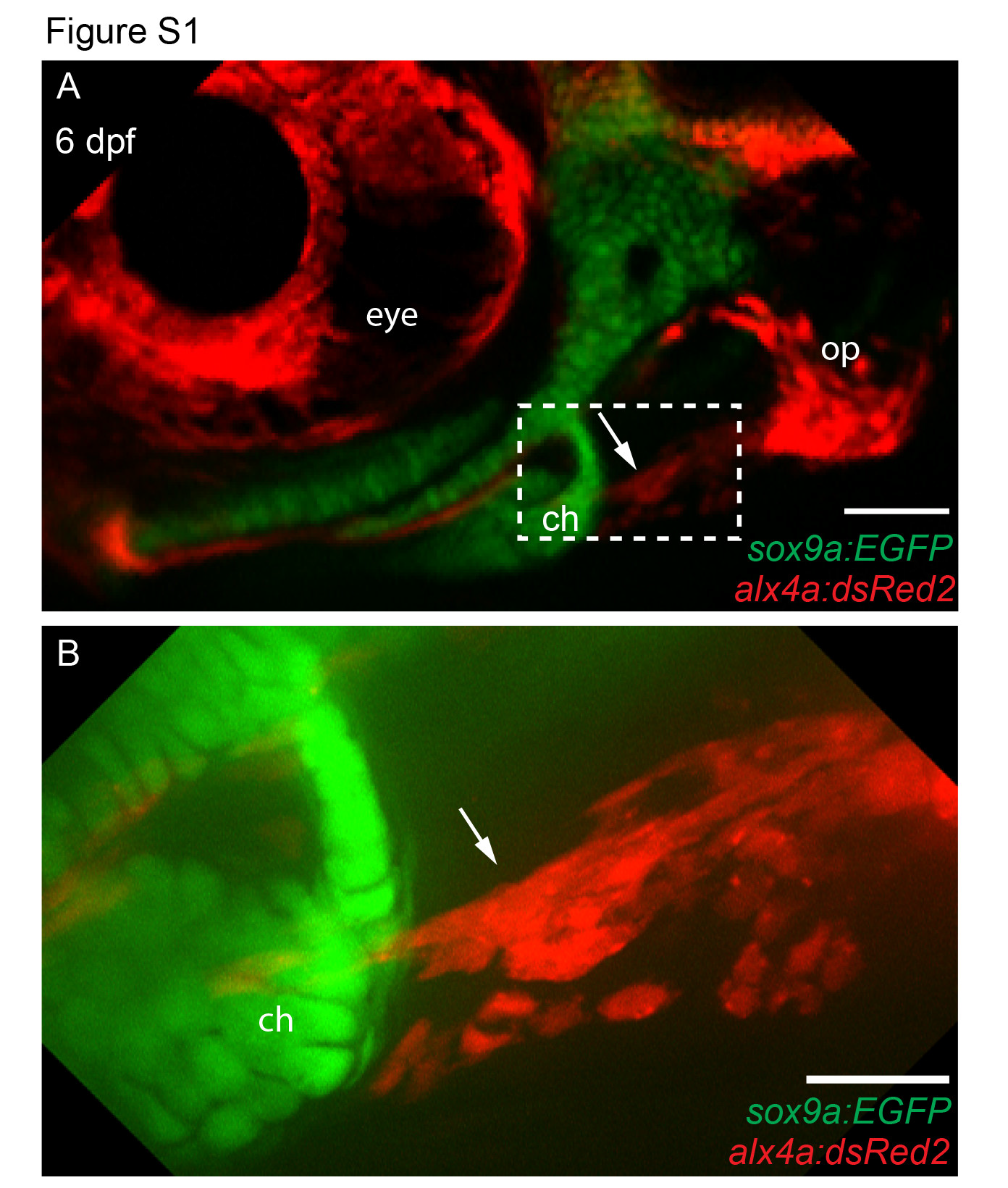

The anterior end of the operculohyoid ligament terminates at the ceratohyal cartilage. (A and B) 6 days post fertilization (dpf) sox9a:EGFP;alx4a:dsRed2 double transgenic larvae were live imaged by confocal microscopty. The dashed region in A is enlarged in B. The operculohyoid ligament is marked with an arrow, the ceratohyal (ch) cartilage, and the opercle (op) bone are indicated and the eye is shown for reference. Both images are projections of multiple confocal sections and lateral views where anterior is towards the left and dorsal is upward. Scale bars are 100µm in A, 25 µm in B.

Figure Data:
