Fig. 2

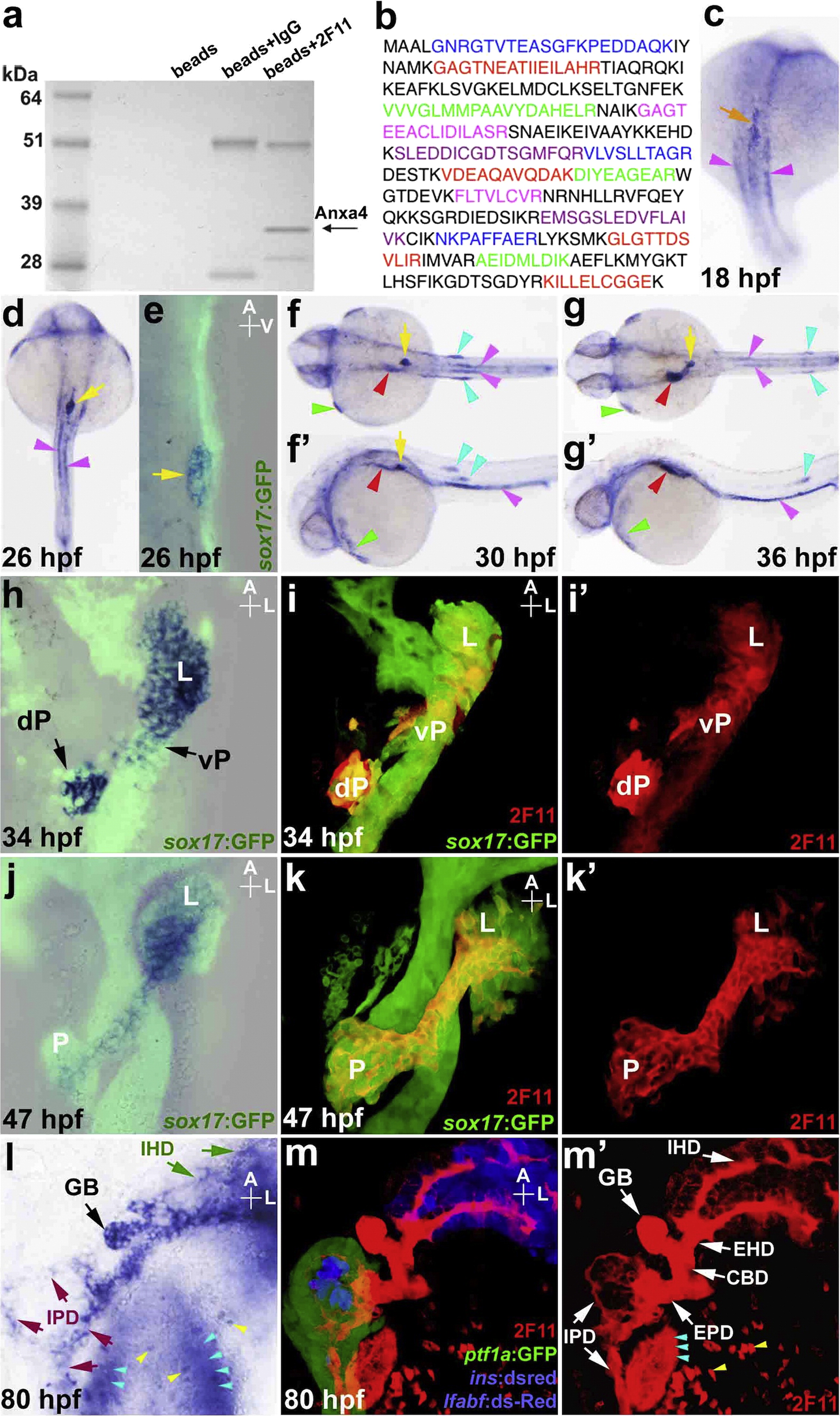

Anxa4 is bound by 2F11 and is expressed in tissues labeled by 2F11. (a) and (b) A 2F11 immuno-precipitated band (arrow in (a)) was analyzed by peptide mass fingerprinting, yielding peptide sequences (colored text in (b)) that match zebrafish Anxa4. (c)-(g′) Anxa4 is expressed in the developing zebrafish foregut (orange arrow), pronephric ducts (magenta arrowheads), dorsal pancreas (yellow arrows), liver bud (red arrowheads), lateral lines (turquoise arrowheads), and hatching gland (green arrowheads). (h)-(k′) The ventral view of Tg(sox17:GFP) with anxa4 transcript (h) and (j) or 2F11 labeling (i), (i′), (k) and (k′) of the liver (L), ventral pancreas (vP), and dorsal pancreas (dP) at 34 hpf (h) and (I′) and 47 hpf (j) and (k′). (l) and (m′) At 80 hpf, both anxa4 transcripts (l) and 2F11 (m) and (m′) are found in the gallbladder (GB), hepatopancreatic ducts, including extrahepatic duct (EHD), common bile duct (CBD), extrapancreatic duct (EPD), intrapancreatic duct (IPD) and intrahepatic duct (IHD), intestinal secretory cells (yellow arrowheads), and mesenchymal cells around the swim bladder (turquoise arrowheads).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 395(1), Zhang, D., Golubkov, V.S., Han, W., Correa, R.G., Zhou, Y., Lee, S., Strongin, A.Y., Dong, P.D., Identification of Annexin A4 as a hepatopancreas factor involved in liver cell survival, 96-110, Copyright (2014) with permission from Elsevier. Full text @ Dev. Biol.
