Fig. 6

ID
ZDB-IMAGE-160728-55
Source
Figures for Dworkin et al., 2014
Figure Caption

Fig. 6

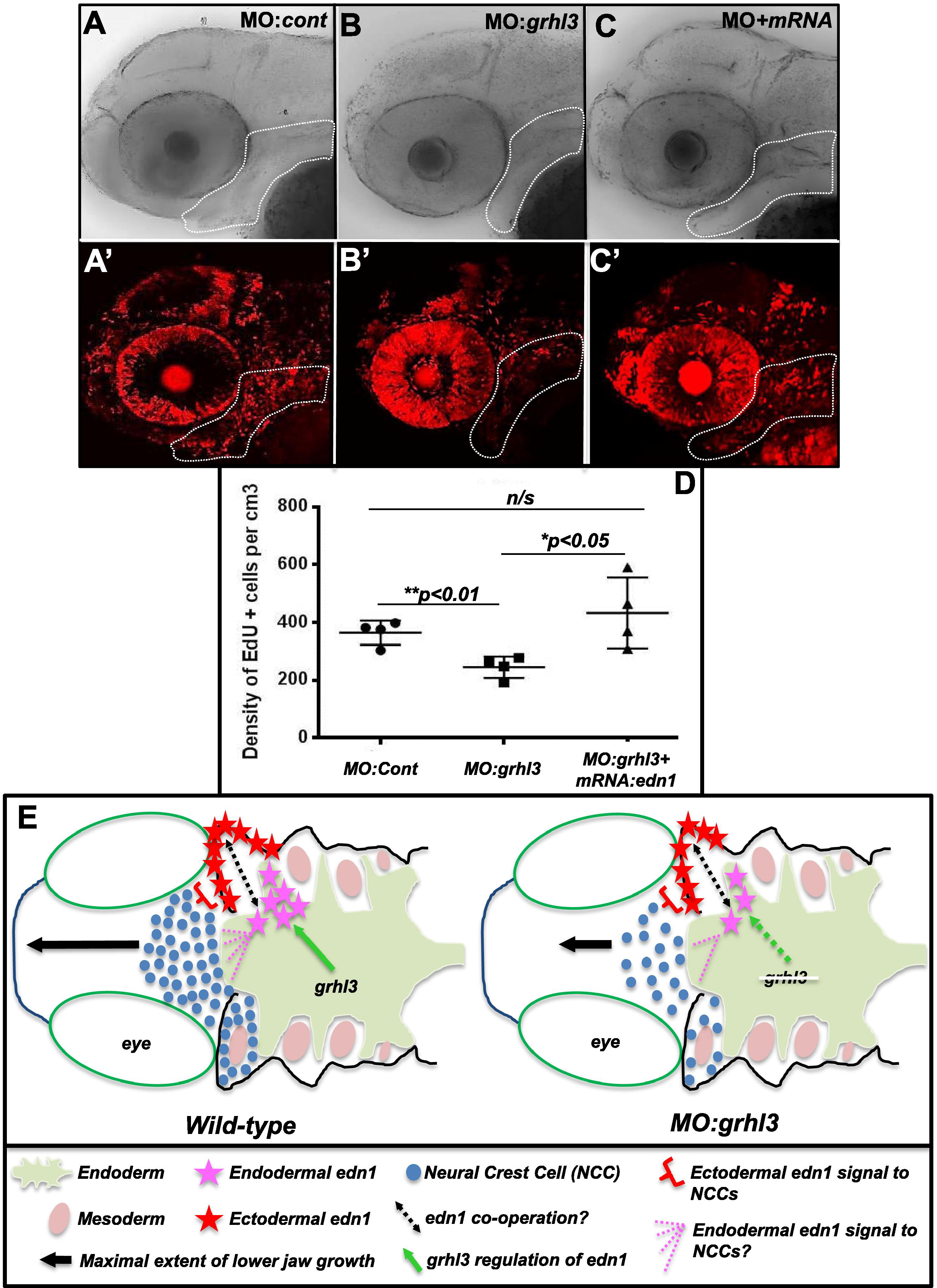

Endodermal edn1 is required for NCC maintenance in the pharyngeal arches. (A-D) EdU incorporation analysis (48 hpf) shows that grhl3-morphants exhibit decreased proliferation in the lower-jaw primordium of the pharyngeal arches (dotted regions) relative to controls (A and B′); this proliferation is restored to WT levels in edn1-rescued grhl3-morphants (C-C′). These data were quantitated using unpaired t-test with Welch’s correction (D). (E) Our model suggests that endodermal edn1, regulated by grhl3, is required in order to provide pro-proliferative/survival signals for NCCs within the pharyngeal arches. This interaction may be direct, via homeostatic maintenance of total pharyngeal edn1-signalling, or through both mechanisms, in order to provide to allow subsequent NCC differentiation into the complete craniofacial skeleton.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 133, Dworkin, S., Simkin, J., Darido, C., Partridge, D.D., Georgy, S.R., Caddy, J., Wilanowski, T., Lieschke, G.J., Doggett, K., Heath, J.K., Jane, S.M., Grainyhead-like 3 regulation of endothelin-1 in the pharyngeal endoderm is critical for growth and development of the craniofacial skeleton, 77-90, Copyright (2014) with permission from Elsevier. Full text @ Mech. Dev.
