Figures for Benato et al., 2014
Figure Caption

Fig. 5

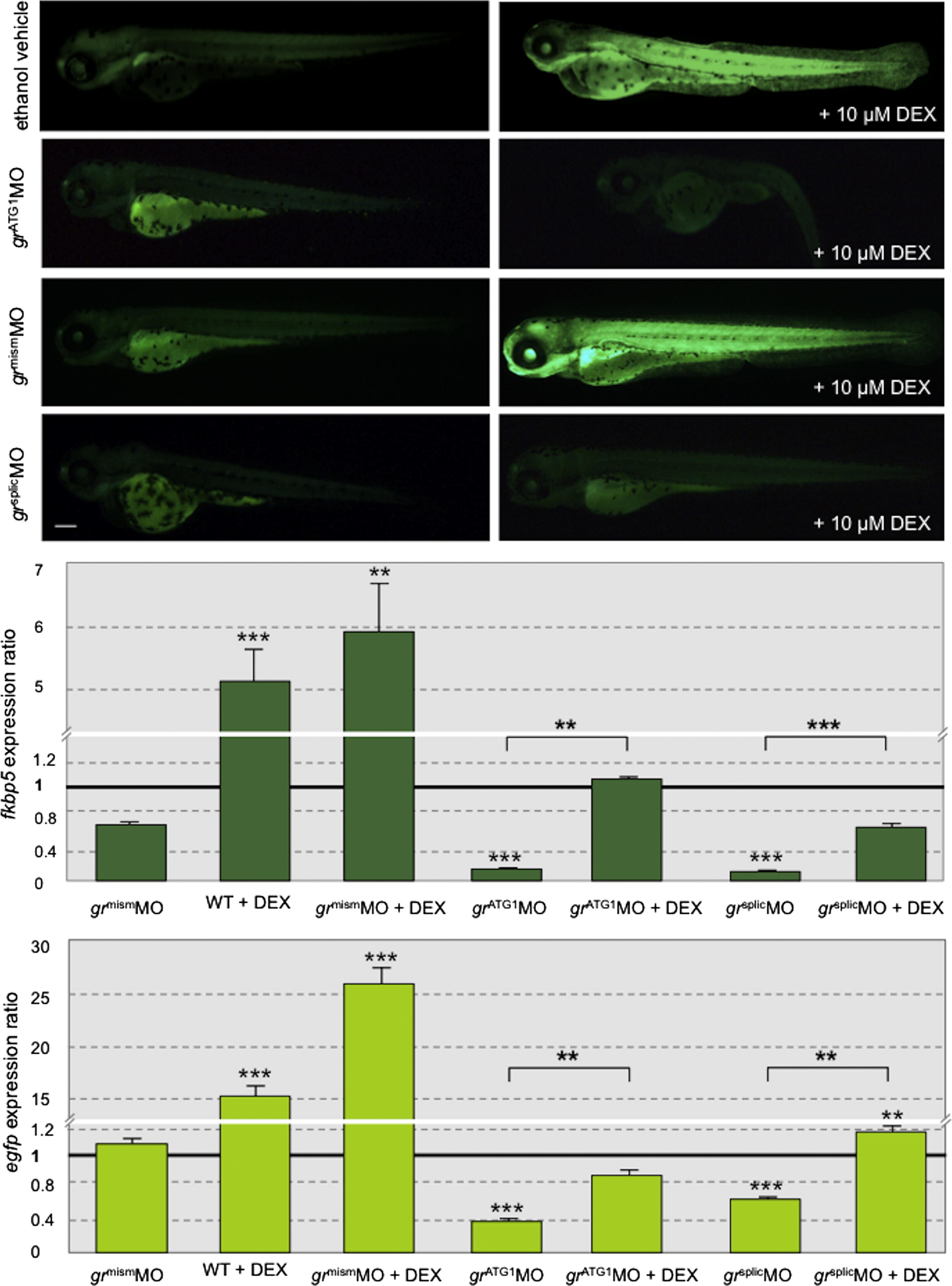

Reduced GRE activity following gr MOs injections alone or combined with 10 µM DEX treatment of 2-dpf transgenics for 24 h. Top panel: EGFP protein localization in control (ia20 embryos) and after translation-blocking MO (grATG1MO), missplicing MO (grsplicMO) and mismatched control MO (grmismMO) injections alone (on the left) or combined with DEX treatment (on the right). Middle and bottom panels: fold changes in gene expression of fkbp5 and egfp in embryos injected with grmismMO, grATG1MO and grsplicMO w/wo DEX treatment as compared to non- injected/non-treated control (set at 1). The expression levels of the target genes were normalized on ef1a as housekeeping gene. Values represent the mean ± S.E. Asterisks indicate expression levels that are significantly different from control (ia20 embryos) or between samples as indicated by the horizontal line: **P < 0.01; ***P < 0.001. Scale bar: 200 µM.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, 392(1-2), Benato, F., Colletti, E., Skobo, T., Moro, E., Colombo, L., Argenton, F., Dalla Valle, L., A living biosensor model to dynamically trace glucocorticoid transcriptional activity during development and adult life in zebrafish, 60-72, Copyright (2014) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
