Fig. 6

ID
ZDB-IMAGE-160712-5
Genes
Source
Figures for Xu et al., 2014
Figure Caption

Fig. 6

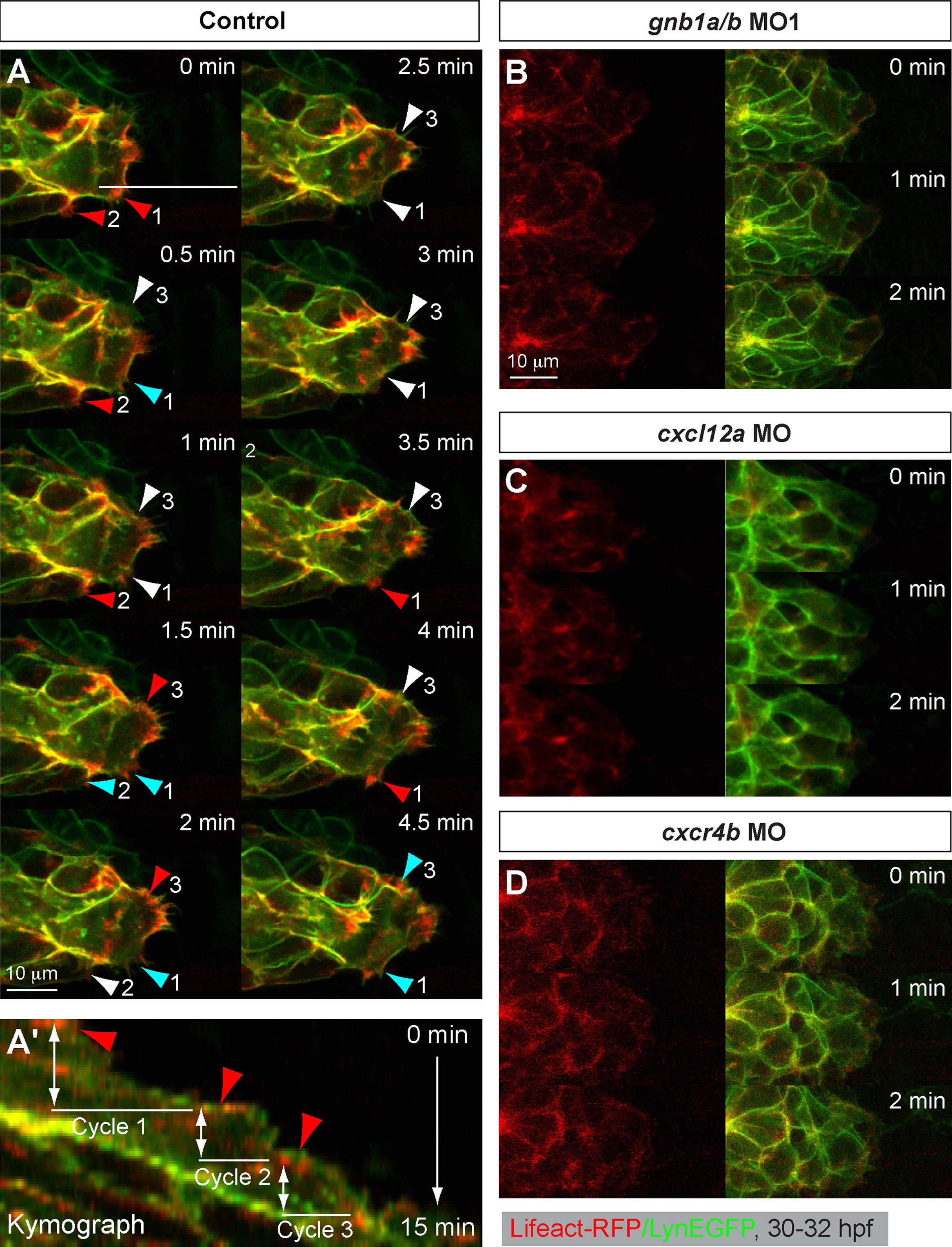

Gβ1 signaling regulates actin dynamics in the leader cells of the pLLP. Confocal time-lapse movies taken on Tg(-135bpcxcr4b:lifeact-RFP)/Tg(-8.0cldnb:lynEGFP) double-transgenic embryos at 30–32 hpf, in which actin cytoskeleton dynamics were revealed by Lifeact-RFP labeling, and pLLP cell membrane by membrane-bound EGFP. (A-A′) (A) Montage images of the control pLLP leader cells from a 4.5-min confocal time-lapse movie. A few protrusion areas (arrowheads) were highlighted (red: high actin labeling, Cyan: decreased actin labeling, and white: faint or no actin labeling). Numbers follow the same area. A 19.5-min time-lapse recording is shown in Movie 9. (A′) The kymograph image was generated from 15-min movie along the line shown in the snapshot at 0 min time point, showing the relative positions of Lifeact-RFP and LynEGFP labeling. A few cycles of association and dissociation of Lifeact-RFP enrichment (arrowheads) with GFP were shown. (B, D) Snapshots of the leading region of the pLLP of gnb1a/b MO- (B, Movies 10), cxcl12a MO- (C) or cxcr4b MO- (D) injected embryos.
