ZFIN Image: Lin et al., 2016, Fig. 5


Figure Caption

Fig. 5

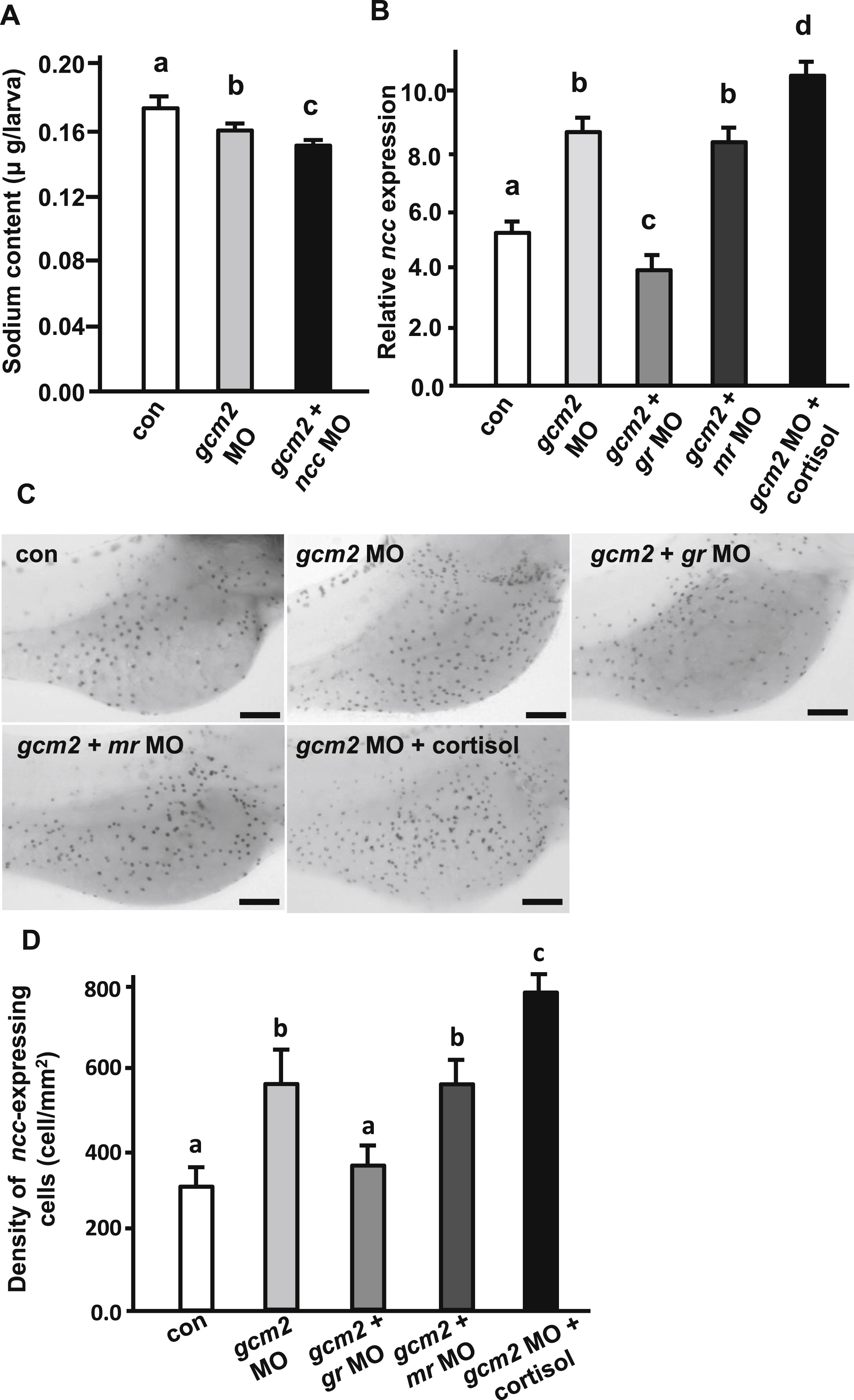

Effect of ncc and/or gcm2 MO on sodium content in zebrafish larvae; and effects of gr and mr knockdown and cortisol treatment on ncc mRNA expression in zebrafish larvae injected with gcm2 MO. The sodium content (A) and expression of ncc mRNA (B), ncc signals (C), and the density of ncc-expressing cells (D) in the indicated larvae are shown. The expression of mRNA was analyzed by qPCR using β-actin as the internal control. Different letters indicate significant differences (p < 0.05), as determined using one-way ANOVA followed by Tukey′s multiple-comparison test. Values are the mean ± SD. (n = 5–6). Scale bar: 100 µm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, 422, Lin, C.H., Hu, H.J., Hwang, P.P., Cortisol regulates sodium homeostasis by stimulating the transcription of sodium-chloride transporter (NCC) in zebrafish (Danio rerio), 93-102, Copyright (2016) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
