Fig. 5

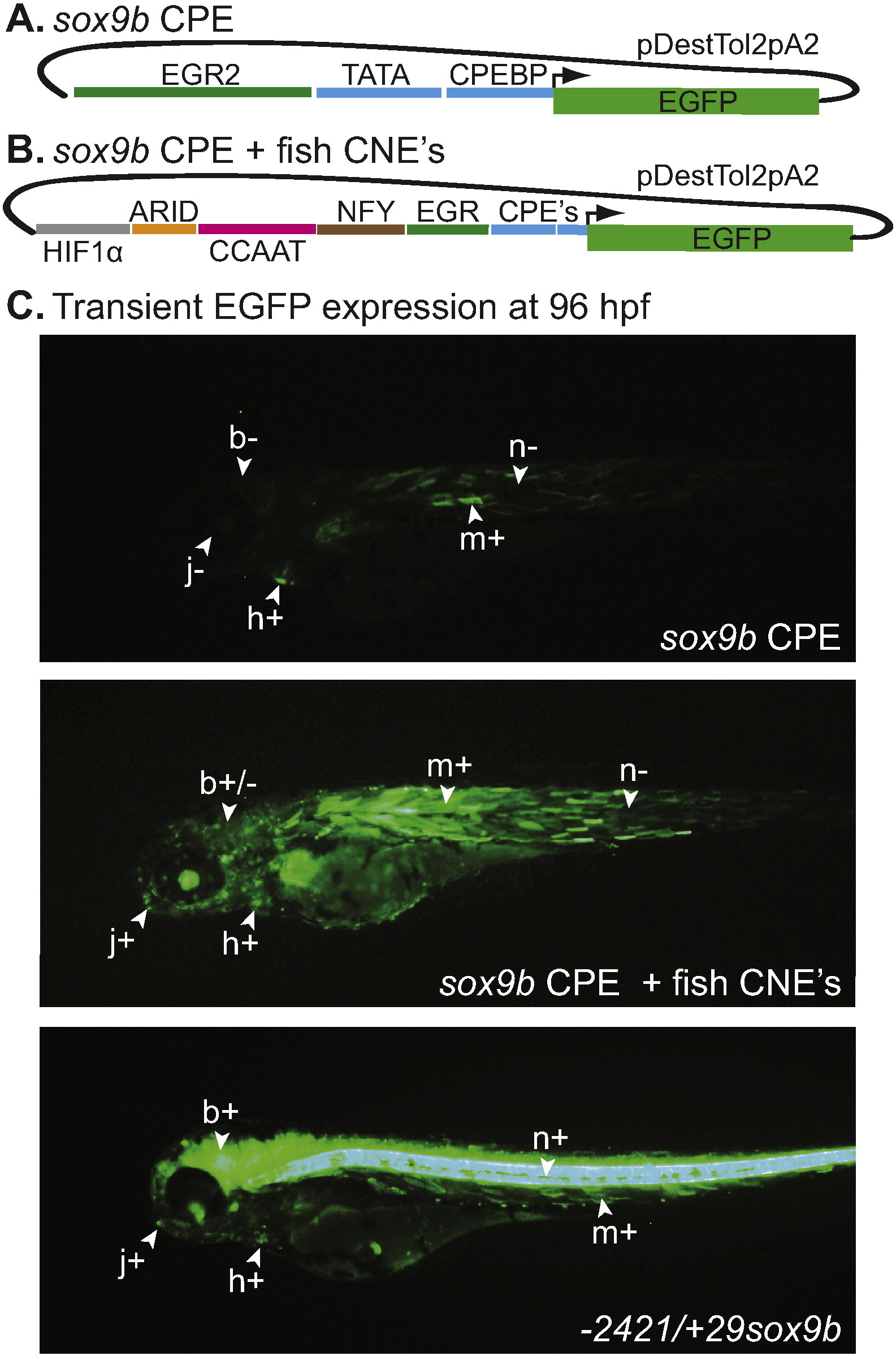

Expression of interspecies conserved non-coding elements. (A) Minimal sox9b promoter construct (sox9b CPE) driving EGFP expression. (B) sox9b core promoter with the additional fish CNEs (sox9b CPE + fish CNEs) driving EGFP expression. (C) Lateral views in the green channel of 96 hpf zebrafish transiently expressing EGFP under control of the various sox9b:EGFP constructs. Abbreviations are: brain, b; heart, h; jaw, j; skeletal muscle, m; and notochord, n.
