Fig. 1

ID
ZDB-IMAGE-160226-13
Source
Figures for Wu et al., 2016

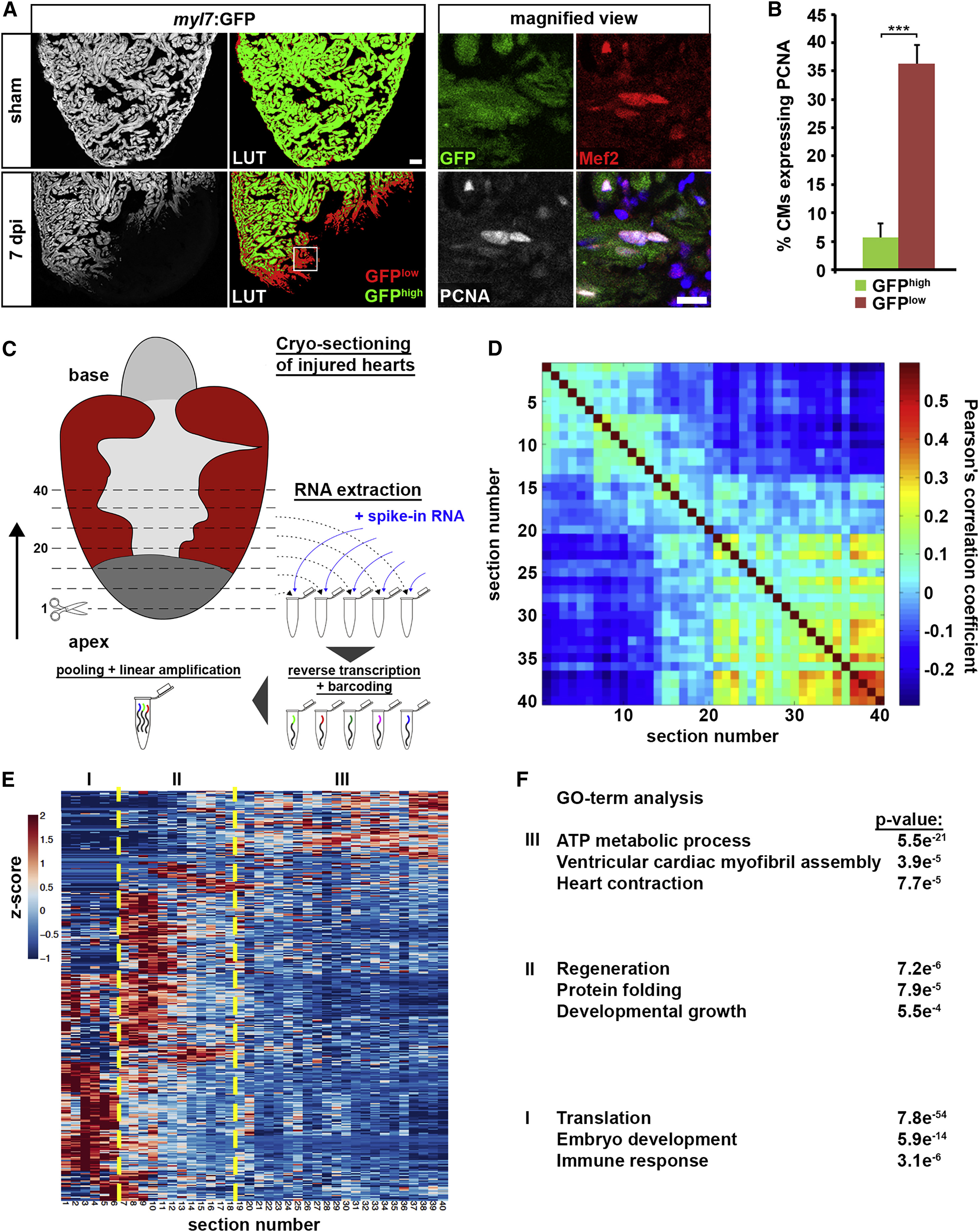

Figure Caption

Fig. 1

Tomo-Seq Identifies Genes with Spatially Restricted Expression in the Regenerating Heart

(A) Ventricular myl7:GFP expression is reduced at the wound border at 7 days post cryoinjury (dpi). In LUT (lookup table) images, GFP intensity below a threshold of 30% of signal intensity is displayed in red (GFPlow) while the rest is displayed in green (GFPhigh). Boxed area is presented as magnified view,which shows examples of Mef2+, GFPlow cardiomyocytes expressing PCNA. Scale bars, 50 µm (overview) and 25 µm (magnified view).

(B) Average percentage of PCNA expressing GFPlow and GFPhigh cardiomyocytes. Error bars represent SEM. Student’s t test, ***p = 0.0003.

(C) Cartoon summarizing the tomo-seq procedure. Cryoinjured zebrafish ventricles were sectioned from apex to base. RNA from single sections was extracted, followed by reverse transcription and barcoding, after which the samples were pooled for linear amplification and sequence library preparation.

(D) Pairwise correlation between individual sections across all genes detected at more than four reads in more than one section of the 3 dpi heart.

(E) Hierarchical clustering of Z score transformed expression profiles of all genes with expression peak (Z score > 1 in > 4 consecutive sections) in the 3 dpi heart. Zones I to III are marked by dashed yellow lines.

(F) Results of GO-term analysis using GOrilla for genes with spatially restricted expression in zones I, II, and III (based on gene lists in Data S2, S3, and S4) in the 3 dpi heart.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 36(1), Wu, C.C., Kruse, F., Vasudevarao, M.D., Junker, J.P., Zebrowski, D.C., Fischer, K., Noël, E.S., Grün, D., Berezikov, E., Engel, F.B., van Oudenaarden, A., Weidinger, G., Bakkers, J., Spatially Resolved Genome-wide Transcriptional Profiling Identifies BMP Signaling as Essential Regulator of Zebrafish Cardiomyocyte Regeneration, 36-49, Copyright (2016) with permission from Elsevier. Full text @ Dev. Cell
