Figure Caption

Fig. 2

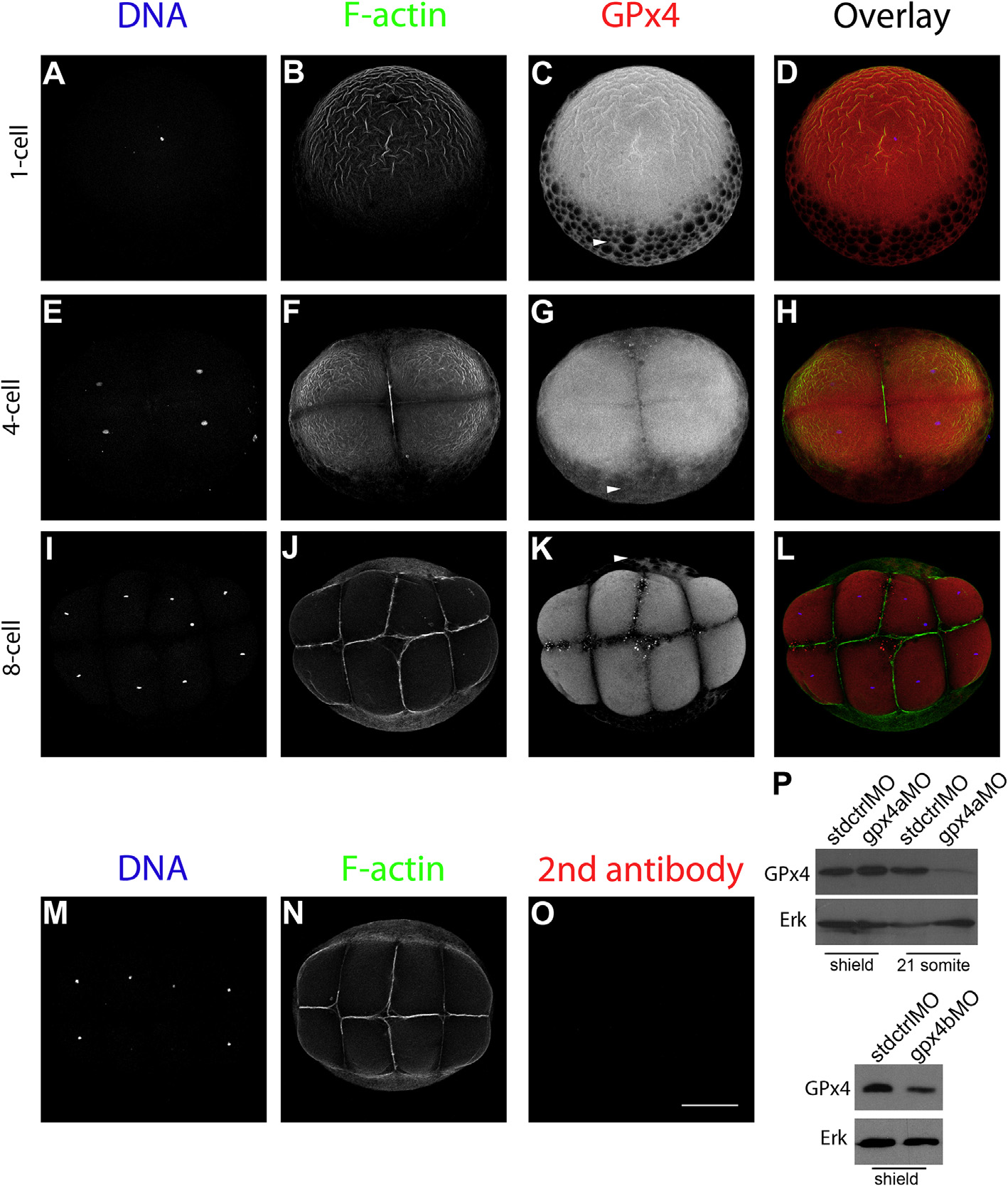

GPx4 immunofluorescence localization patterns in whole zebrafish embryos from 1- to 8-cell stages as detected by laser confocal microscopy. 1-cell embryo (A, B, C and D). 4-cell stage embryo (E, F, G and H). 8-cell stage embryos (I, J, K and L). 8-cell stage control embryo in which the primary antibody was omitted but was incubated in the presence of secondary antibody (M, N and O). DNA, Hoechst-stained embryos (A, E. I and M). F-actin, phalloidin Alexa 488 stained embryos (B, F, J and N). GPx4, immunolocalization in whole embryos (C, G and K). Arrowheads indicate GPx4-positive signals in the yolk (C, G and K). Animal pole views are shown. Scale bar 200 µm. P, GPx4 antibody validation in zebrafish embryo samples at the shield stage. Gpx4a and b were down regulated by morpholino injection. A signal decrease was verified by western blotting, in which we compared immunoblot results with total protein samples from gpx4a or gpx4b morpholino injected embryos against standard control morpholino injected embryos. After immunoblotting for GPx4, the same membranes were stripped and immunoblotted against total ERK to confirm that the same amount of protein was loaded into the wells.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 19(1-2), Mendieta-Serrano, M.A., Schnabel-Peraza, D., Lomelí, H., Salas-Vidal, E., Spatial and temporal expression of zebrafish glutathione peroxidase 4 a and b genes during early embryo development, 98-107, Copyright (2015) with permission from Elsevier. Full text @ Gene Expr. Patterns
