Figure Caption

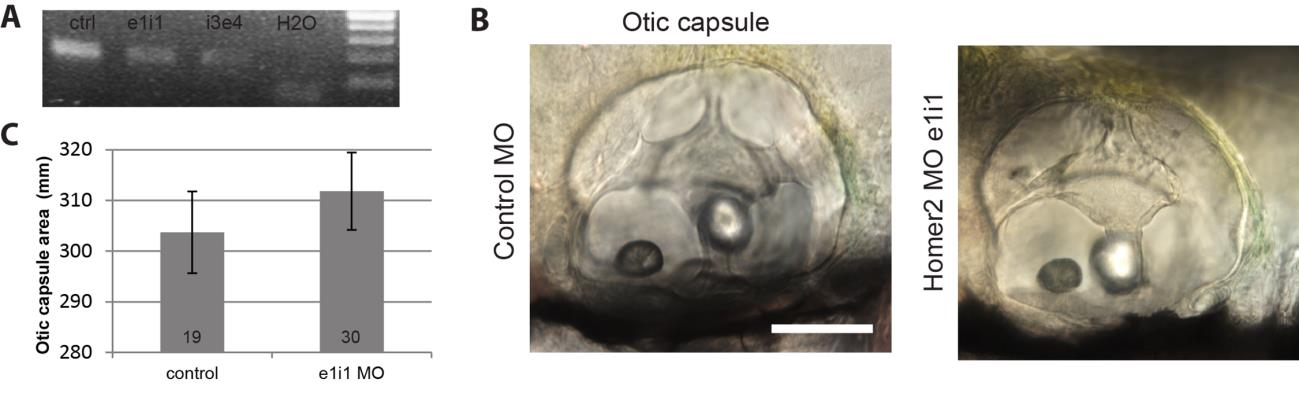

Fig. S3
Knock down of homer2 in zebrafish embryos.
(A) RT-PCR demonstrating knock down of homer2 transcript using two morpholinos: MO e1i1 and MO i3e4. (B) Representative morphology of otic capsules in zebrafish embryos at 72 hpf either injected with a control MO or MO e1i1. (C) Otic capsule area was measured in 19 and 30 animals in the control and MO groups, respectively. There was no statistically significant difference between groups. Scale bar represents 50µm.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ PLoS Genet.
