Fig. S9

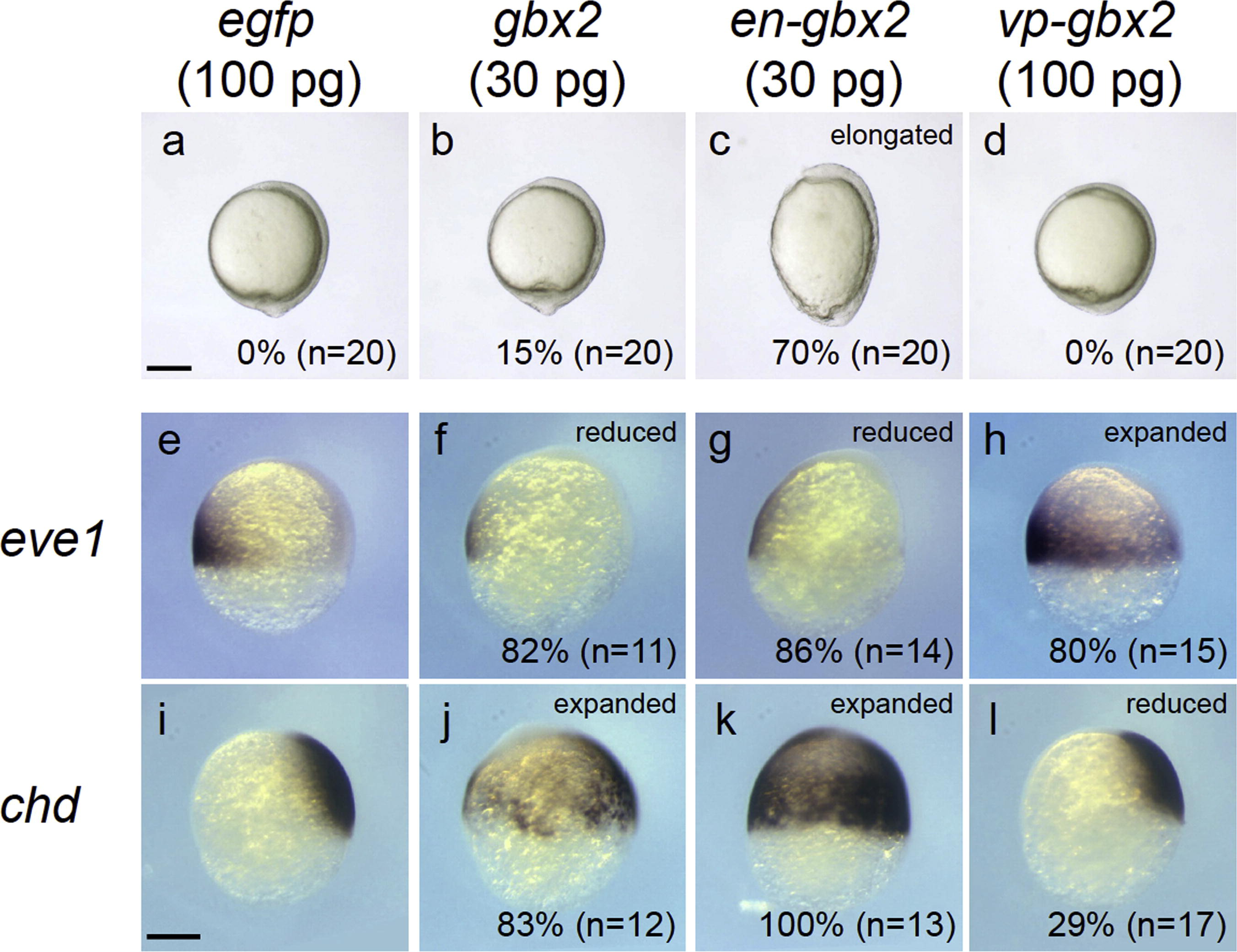

Overexpression of gbx2 and en-gbx2 elicited dorsalization of embryos. Embryos were injected with mRNA for egfp (100 pg/embryo), gbx2 (30 pg/embryo), en-gbx2 (30 pg/embryo), or vp-gbx2 (100 pg/embryo). Lateral views with dorsal to the right and anterior to the top. (a–d) Bud-stage embryos with percentages showing extended morphology. (e–l) Expression of dorsoventral marker genes in 60%-epiboly embryos injected with gbx2-related genes. Ventral expression of eve1 was reduced by gbx2 and en-gbx2, whereas expanded by vp-gbx2. Dorsal expression of chd showed opposite responses to the same genes. Percentages show the embryos with the phenotypes shown in respective panels. Scale bars, 200 µm.
