ZFIN Image: Nakayama et al., 2013, Fig. S5


Figure Caption

Fig. S5

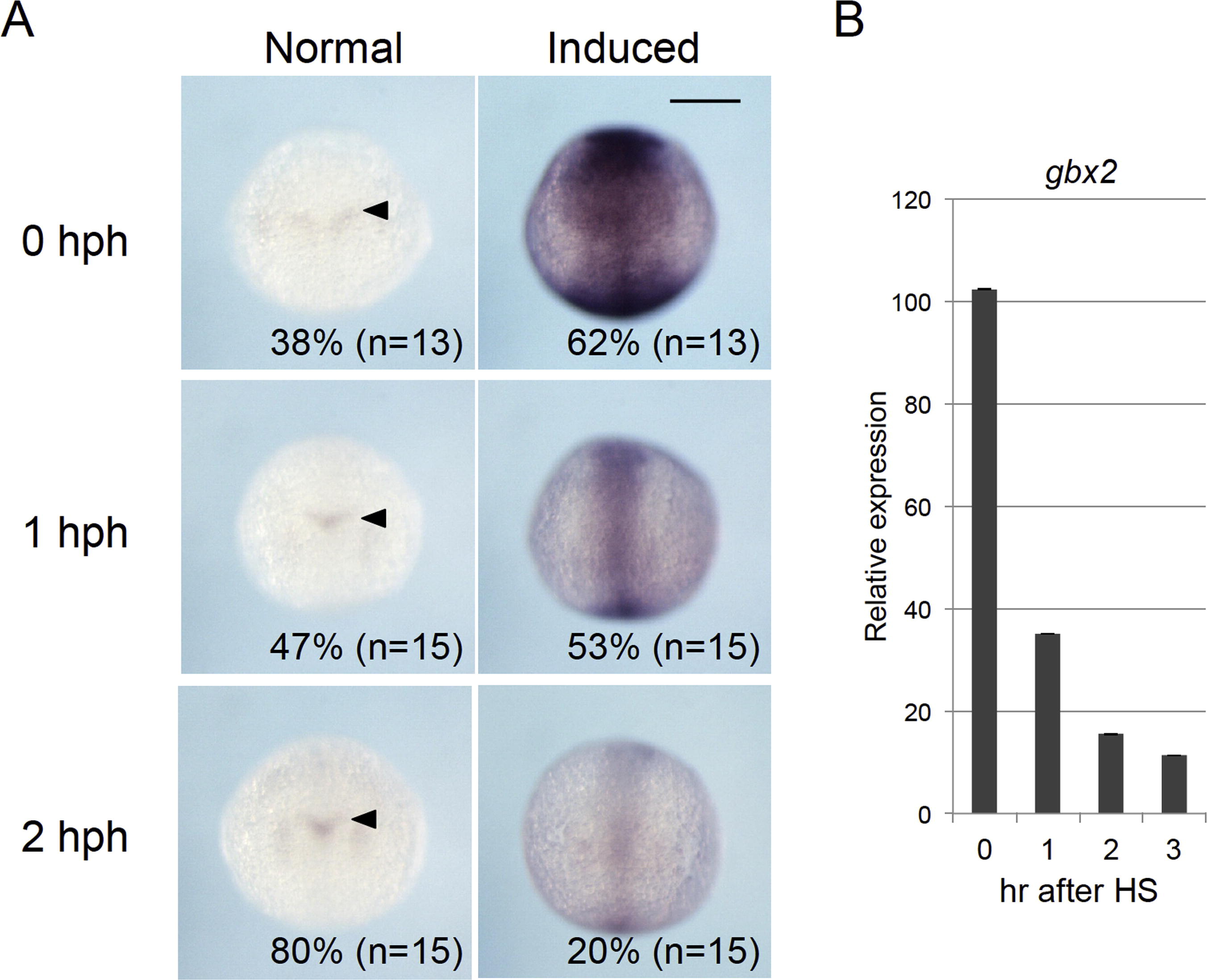

Transient nature of hsp70l:gbx2 induction. (A) Offspring embryos from a cross between wild-type and hsp70l:gbx2^+/- Tg fish were exposed to heat shock at the bud stage and examined 0 h, 1 h, or 2 h later for gbx2 expression by whole mount in situ hybridization (hours post-heat shock, hph). The expression of endogenous gbx2 is marked with solid triangles. Both the intensity of staining and proportion of stained embryos were significantly reduced in 2 h. Scale bars, 200 µm. (B) Quantitative analysis of the gbx2 mRNA level by qPCR after hsp70l:gbx2 induction. The quantities of gbx2 mRNA are shown relative to those of wild-type embryos that were treated likewise. The levels of endogenous gbx2 mRNA, which was quantitated by amplification of the 3′UTR region, were less than 2% of the total gbx2 mRNA whether or not treated with heat shock (data not shown).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 130(11-12), Nakayama, Y., Kikuta, H., Kanai, M., Yoshikawa, K., Kawamura, A., Kobayashi, K., Wang, Z., Khan, A., Kawakami, K., and Yamasu, K., Gbx2 functions as a transcriptional repressor to regulate the specification and morphogenesis of the mid-hindbrain junction in a dosage- and stage-dependent manner, 532-52, Copyright (2013) with permission from Elsevier. Full text @ Mech. Dev.
