Fig. S8

ID
ZDB-IMAGE-150318-22
Source
Figures for Gerlach et al., 2014
Figure Caption

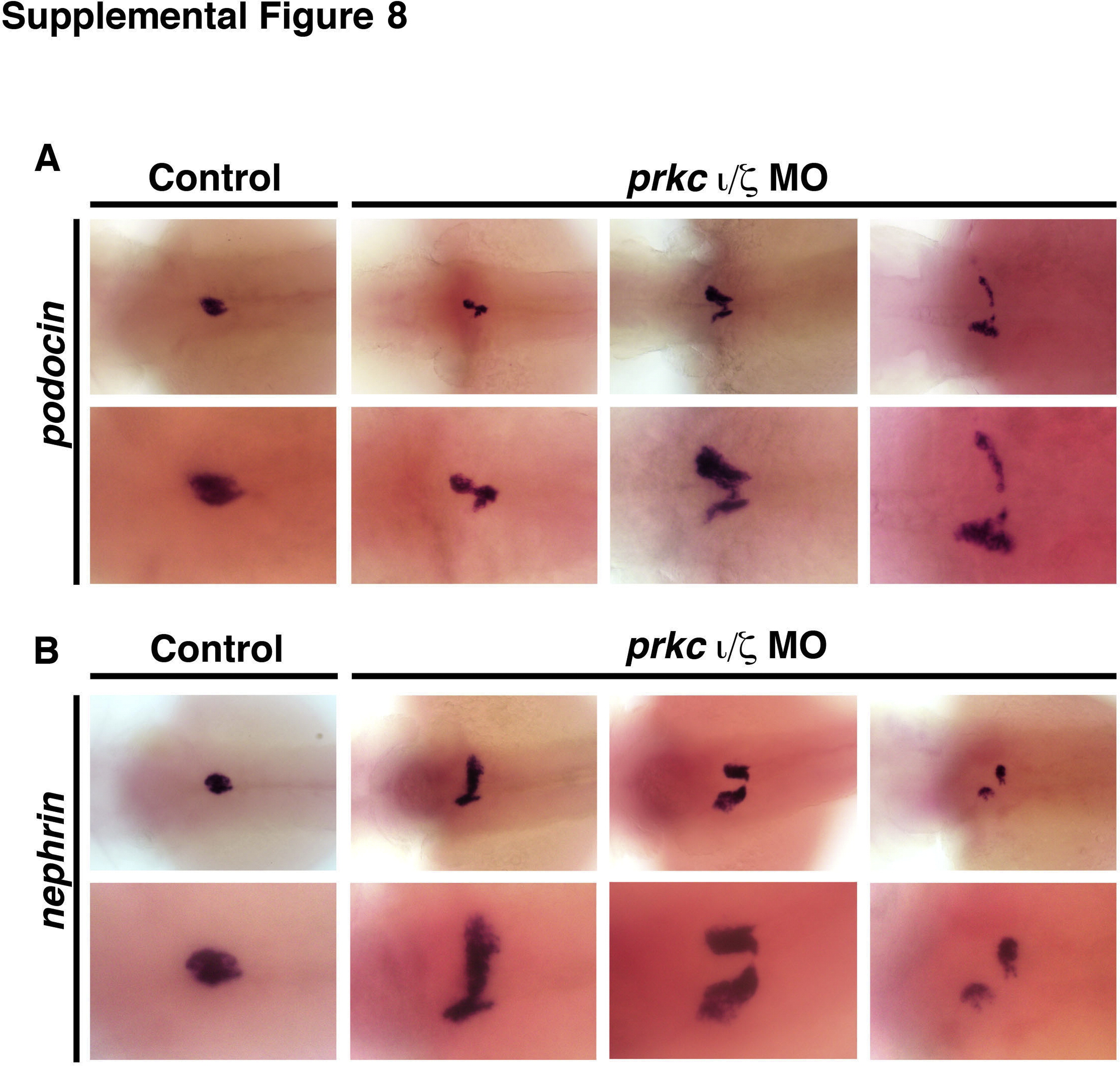

Fig. S8 Expression analysis of podocyte specific transcripts nephrin and podocin show a range of failed migration and/or morphogenesis phenotypes in double prkCI morphant embryos. At 72 hpf, podocytes in wild-type controls (left panels) have migrated and fused at the midline to form a central glomerulus, that express (A) podocin and (B) nephrin (top row 4× magnification; bottom row 10× magnification). In double prkCI morphants, podocytes do not migrate normally to the midline, as shown by the pattern of (A) podocin and (B) nephrin expressing cells, and furthermore display variable migration patterns.
