ZFIN Image: Ju et al., 2014, Fig. 2


Figure Caption

Fig. 2

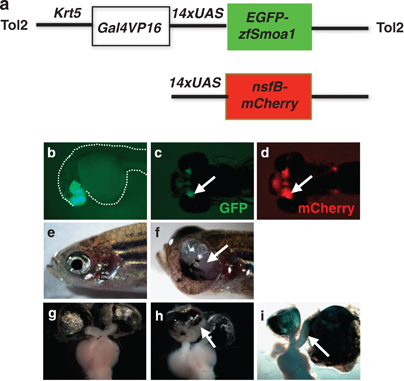

Phenotypic characterization of a stable transgenic line. (a) Graphic representation of the DNA constructs used for transgenesis and breeding. (b) A 24h.p.f. embryo expresses Smoa1-EGFP in the forebrain and retinal neuroblasts. A 96h.p.f. double transgenic embryo derived from crossing of the Tg(krt5:Gal4VP16;14 × UAS:smoa1-EGFP) and the Tg(UAS-E1b:nfsB-mCherry)^c264 stable lines expressed GFP (c) and mCherry (d) in the ONs (arrows). (e) A 6-month-old wild-type and (f) a transgenic fish with a gross tumor in its left eye (arrow). (g) Wild-type fish formed a normal optic chiasm, whereas (h) transgenic fish failed to form optic chiasm and showed dramatic expansion of the ONH region (arrow). (i) Dissected brain and eyes showing an enlarged ON associating with a gross eye tumor (arrow).

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Oncogenesis
