Fig. S4
Acsl4a is epistatic to the Bmp receptor Alk8, related to Figure 3.

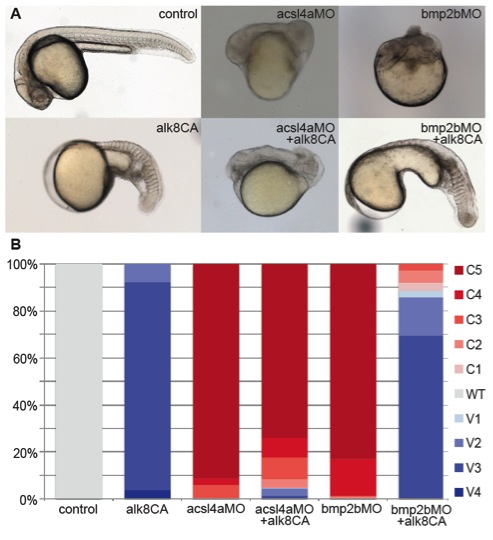

(A) Representative bright-field images of 24 hpf embryos injected with 500 fmol acsl4a MO (class C4), 50 fmol bmp2b MO (class C5), 20-40 pg constitutively active (CA) alk8 mRNA (class V3), a combination of acsl4a MO and alk8CA mRNA (class C4), or a combination of bmp2b MO and alk8CA mRNA (class V3). Lateral view, anterior to the left. (B) Percentages of phenotypic classes. Dorsalization: strong (C5) to weak (C1). Ventralization: strong (V4) to weak (V1). n=283-298 embryos, from 3 separate experiments.
