ZFIN Image: Head et al., 2013, Fig. 5


Figure Caption

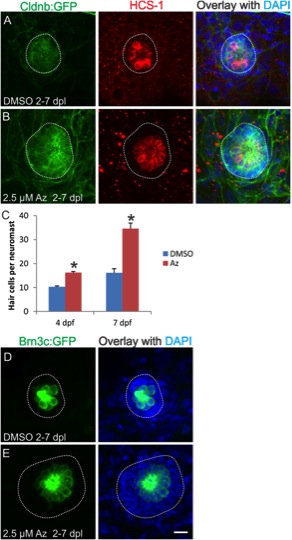

Fig. 5 Azakenpaullone triggers an increase in the number of hair cells differentiating in developing lateral line neuromasts. (A-B) Fish treated with 1-azakenapaullone beginning at 48 hpf show a dramatic increase in the size of the neuromast and in the number of HCS-1 positive hair cells at 7 dpf compared to DMSO-treated controls. (C) Quantification of the number of HCS-1 positive hair cells in an anterior neuromast from 7 fish treated with Az or DMSO beginning at 48 hpf. At both 4 dpf and 7 dpf, Az stimulated a significant increase in the number of differentiated hair cells, with more than twice as many hair cells produced by 7 dpf (*P < 0.01). (D-E) The increase in hair cell number can also be seen using the Brn3c:GFP transgenic line that express GFP in all of their hair cells. In all images, the dashed line represents the extent of the neuromast. Scale bar: 10 μm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
