Fig. 1

ID
ZDB-IMAGE-130225-1
Source
Figures for Zhang et al., 2012
Figure Caption

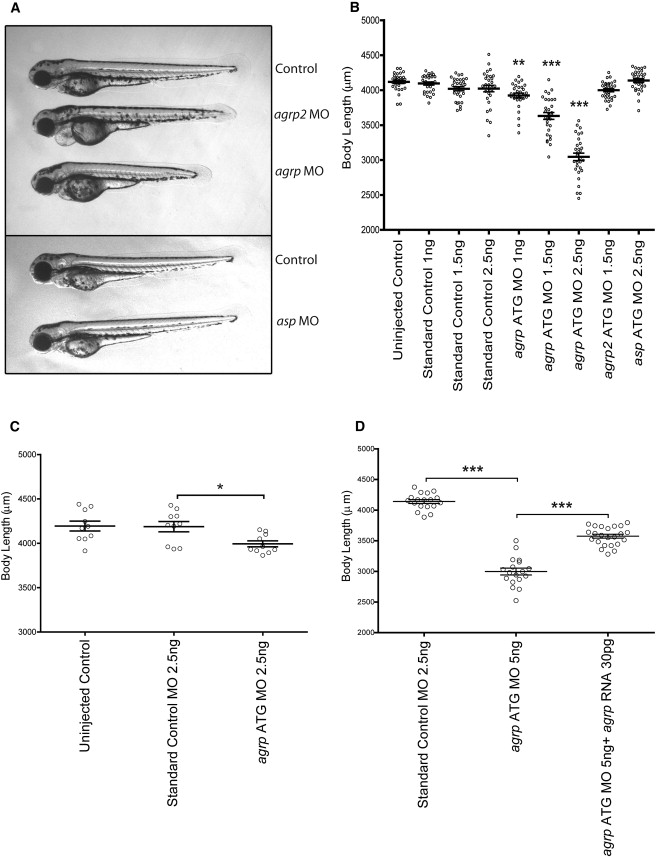

Fig. 1 agrp Is Required for Normal Somatic Growth in Larval Zebrafish

(A–D) Representative fish at 3 dpf following injection at day 0 with morpholino oligonucleotides designed to inhibit expression of each of the zebrafish agouti proteins (A). Body lengths (jaw to tail fin) of injected fish were measured using a micrometer at 5 dpf, showing a dose-responsive inhibition of growth following morpholino blockade of agrp expression (B). Body lengths corresponding to fish injected at day 0 were measured at 14 dpf, showing partial restoration of length (C). Body lengths at 5 dpf following injection of zygotes with 5 ng morpholino oligonucleotide are indicated, plus 30 pg capped agrp RNA, where indicated, showing partial rescue of growth (D). Bars indicate mean ± SEM. n = 30 (B), 10 (C), and 18–23 (D). Statistical significance was tested by one-way ANOVA followed by Tukey′s post test (p < 0.05; p < 0.01; p < 0.001). See also Figure S1

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell Metabolism, 15(2), Zhang, C., Forlano, P.M., and Cone, R.D., AgRP and POMC neurons are hypophysiotropic and coordinately regulate multiple endocrine axes in a larval teleost, 256-264, Copyright (2012) with permission from Elsevier. Full text @ Cell Metab.
