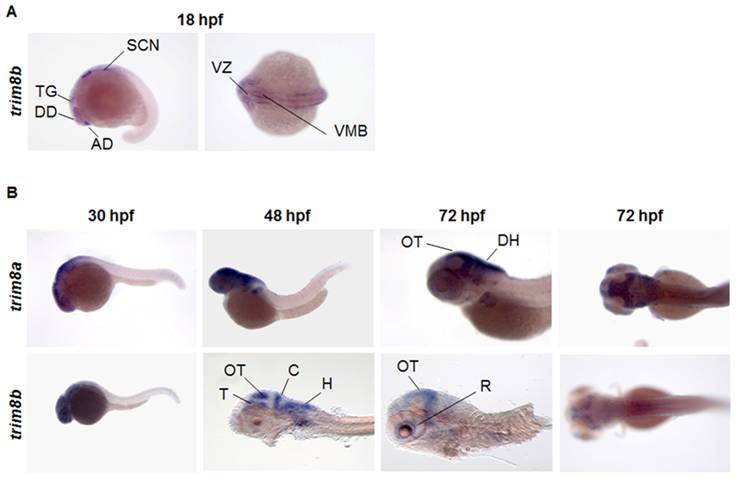

Fig. 3 trim8a and trim8b expression in zebrafish embryos.

(A) Expression pattern of trim8b at 18 hpf determined by whole mount ISH. Left panel: lateral view; right panel: dorsal view. Of note trim8a is not detected at this stage. (B) Comparison of the expression patterns of trim8a (top row) and trim8b (bottom row) after 30 to 72 hours of development. Embryos are in lateral (first three columns) or dorsal views (far right column). Trim8b expression at 48 hpf and 72 hpf (lateral view) is shown in de-yolked and flat mounted embryos (see Methods). Anterior to the left. AD, anterior diencephalon; C, cerebellum; DD, dorsal diencephalon; DH, dorsal hindbrain; H, hindbrain; OT, optic tectum; R, retina; SCN, ventral spinal chord neurons; T, tegmentum; TG, trigeminal ganglia; VMB ventro-lateral midbrain; VZ, brain ventricular zone.
