Fig. 2

ID
ZDB-IMAGE-120823-5
Genes
Antibodies
Source
Figures for Kim et al., 2012
Figure Caption

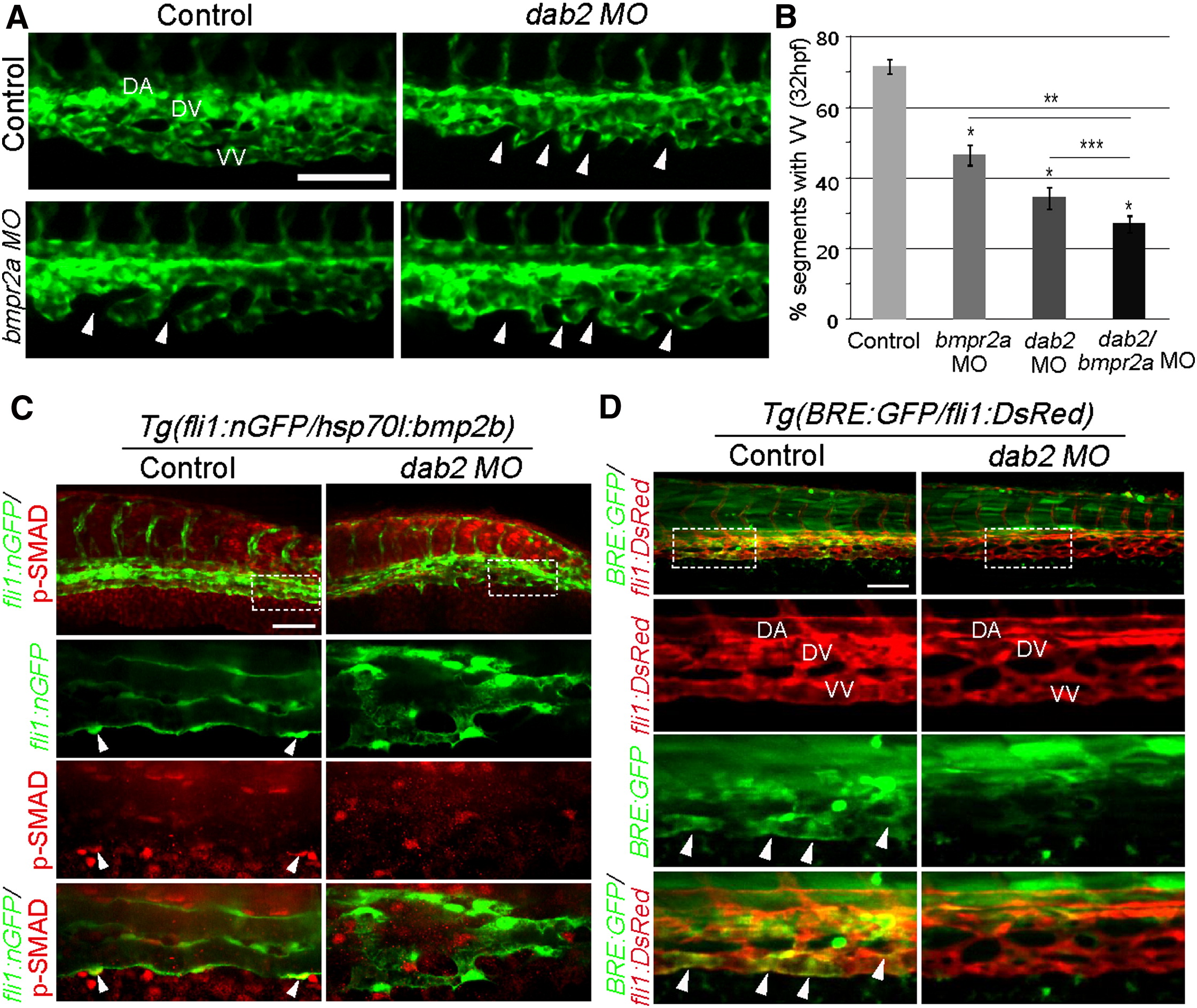

Fig. 2  Dab2 Functionally Interacts with Bmp2b Signal to Promote Caudal Vein Plexus Formation (A) Fluorescent images of 32 hpf control, dab2, bmpr2a, and dab2/bmpr2a MO-injected embryos. Arrowheads point to the regions that fail to connect to neighboring sprouts. Scale bar is 100 μm. See also Figure S2A.(B) Quantification of ventral vein (VV) defects. n = 3, and total number of embryos was 54 (control), 32 (bmpr2a MO), 26 (dab2 MO), or 35 (dab2/bmpr2a MO). p < 0.001 in all cases, except p value against dab2 MO-injected embryos, where p = 0.05. comparison with control MO-injected embryos; comparison with bmpr2a MO-injected embryos; and comparison with dab2 MO-injected embryos. Error bars represent SEM.(C) Confocal micrographs of control or dab2 MO-injected 45 hpf Tg(hsp70l:bmp2b) embryos, showing p-Smad-1,5/8 (red) and endothelial cells (green). Arrowheads point to p-Smad-1,5/8 within venous endothelial cells. Scale bar is 100 μm.(D) Confocal micrographs of control or dab2 MO-injected 45 hpf Tg(BRE:GFP);Tg(fli1:DsRed) embryos. Arrowheads point to GFP expression by BRE. Scale bar is 100 μm. DA, dorsal aorta; DV, dorsal vein; VV, ventral vein.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 23(2), Kim, J.D., Kang, H., Larrivée, B., Lee, M.Y., Mettlen, M., Schmid, S.L., Roman, B.L., Qyang, Y., Eichmann, A., and Jin, S.W., Context-dependent proangiogenic function of bone morphogenetic protein signaling is mediated by disabled homolog 2, 441-448, Copyright (2012) with permission from Elsevier. Full text @ Dev. Cell
