Fig. 6

ID
ZDB-IMAGE-120815-45
Genes
Source
Figures for Liu et al., 2012
Figure Caption

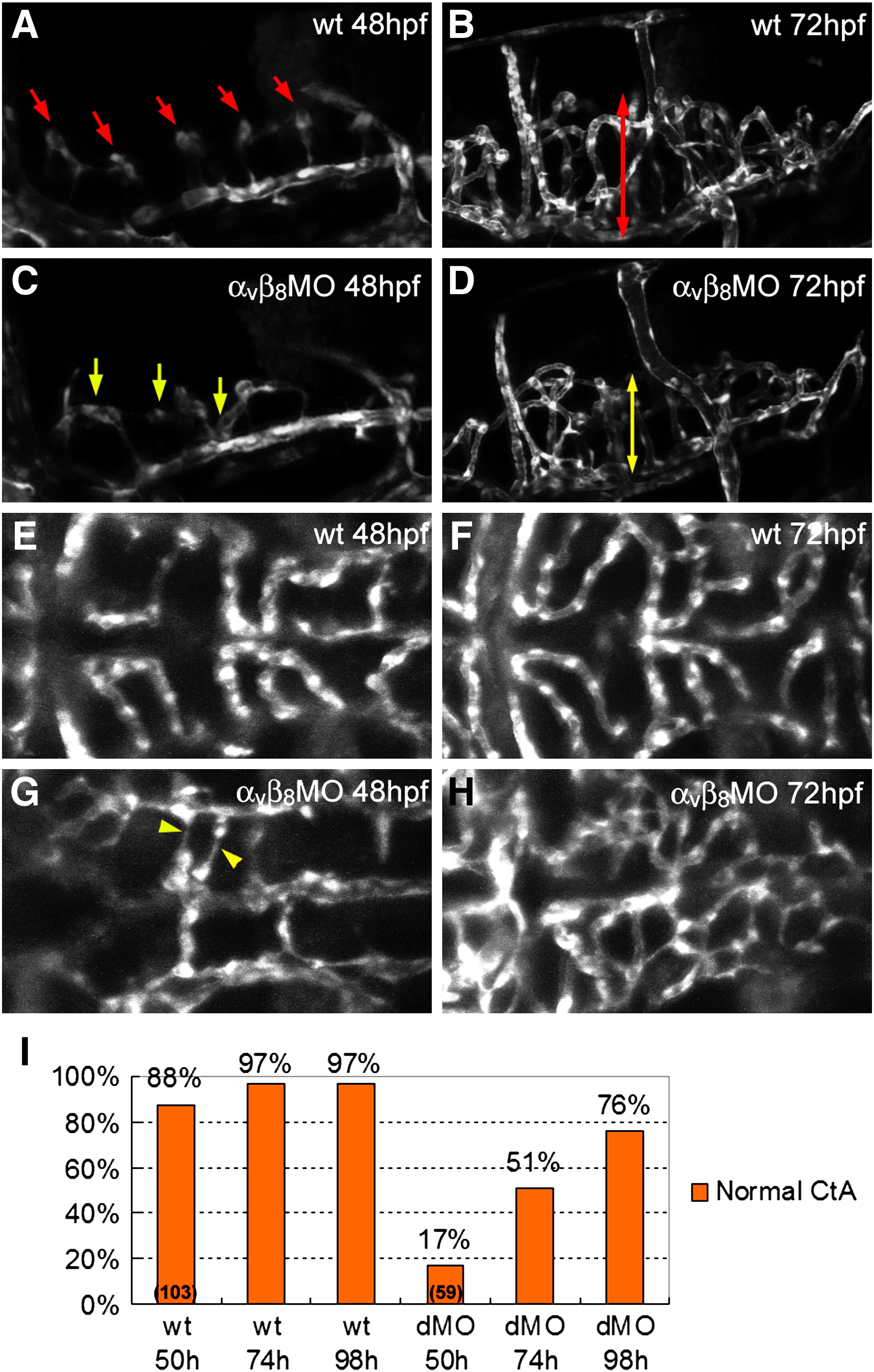

Fig. 6 Defective hindbrain angiogenesis in integrin αv and β8 double morphants. (A) At 48 hpf, a lateral view of the hindbrain of the wild type embryo shows central arteries (CtA, red arrows) sprouting from posterior communicating segment (PCS) and basilar artery (BA) and draining into primordial hindbrain channel (PHBC) (B) At 72 hpf, the CtAs penetrate deeply into the hindbrain in wild type embryos (red double-headed arrow). (C) 48 hpf integrin αvβ8 double morphants show CtAs with reduced number and atypical growth direction (yellow arrows). (D) At 72 hpf, the CtAs in integrin αvβ8 morphants invade into the hindbrain matter, but have reduced length as compared to wild type embryos (yellow double-headed arrow). (E) In a dorsal view regular, lumenized CtA are observed in 48 hpf wild type embryos. (F) At 72 hpf, the basic network structure of the CtA remains similar, although is more refined. (G) In contrast, in 48 hpf integrin αvβ8 double morphants there is a reduced number of CtAs, with very irregular morphology (yellow arrowhead). (H) At 72 hpf, the structure of CtA vasculature in αvβ8 double morphants has an irregular, plexus-like morphology. (I) Quantitation of the percentage normal CtAs at 50, 74 and 98 hpf in wild type embryos (wt) and integrin αvβ8 double morphants (dMO).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 363(1), Liu, J., Zeng, L., Kennedy, R.M., Gruenig, N.M., and Childs, S.J., betaPix plays a dual role in cerebral vascular stability and angiogenesis, and interacts with integrin alphavbeta8, 95-105, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
