Figure Caption
Fig. S6

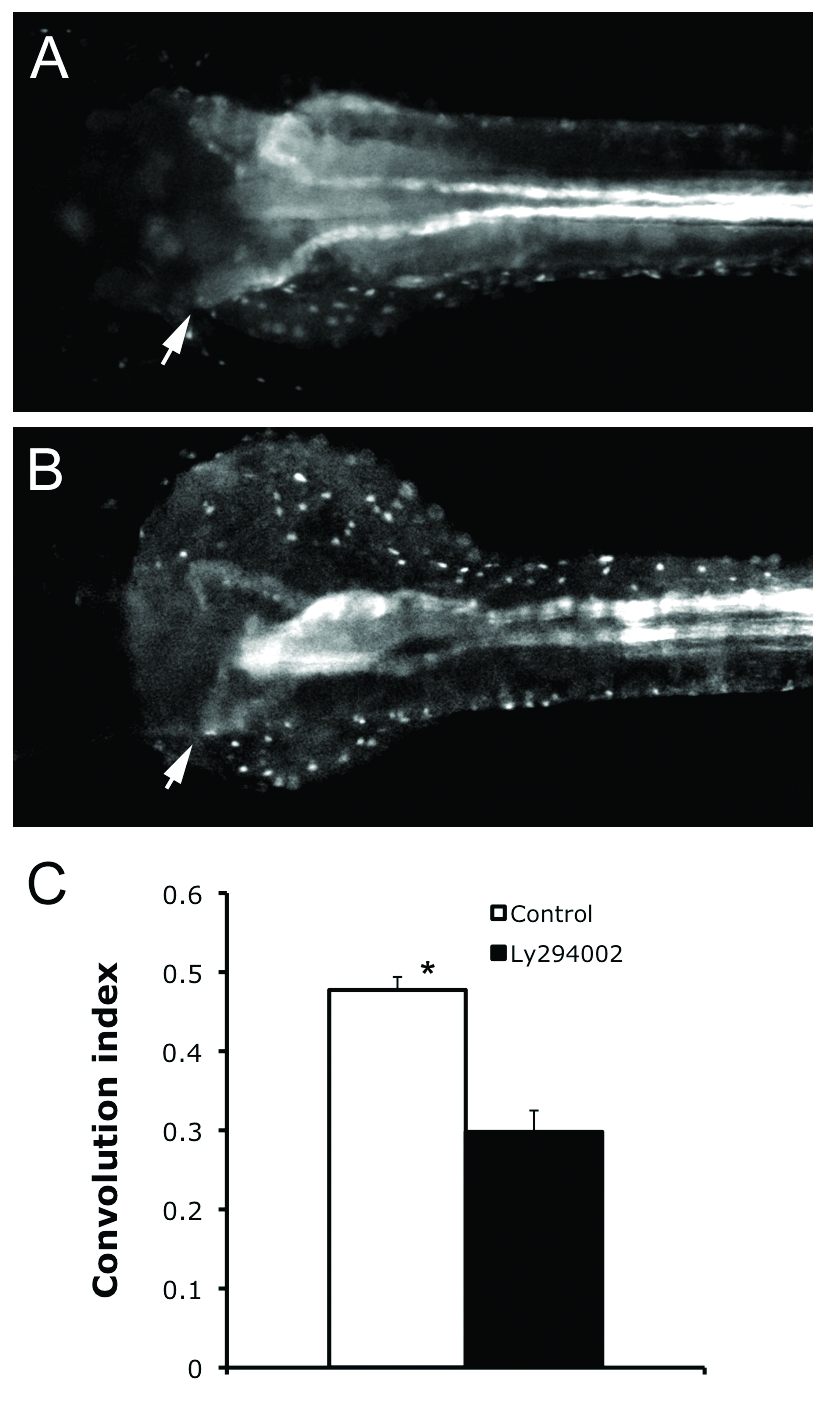

Partial inhibition of proximal convolution by LY294002, related to Figure 4. Tg(atp1a1a.4:GFP) transgenics were analysed for the presence and the extent of proximal convolution at 4 dpf in control embryos (A) vs. the LY294002 treated embryos (B). The estimation of the degree of convolution by a convolution index shows partial but significant reduction in the degree of proximal convolution (C, P<0.01).
