Figure Caption

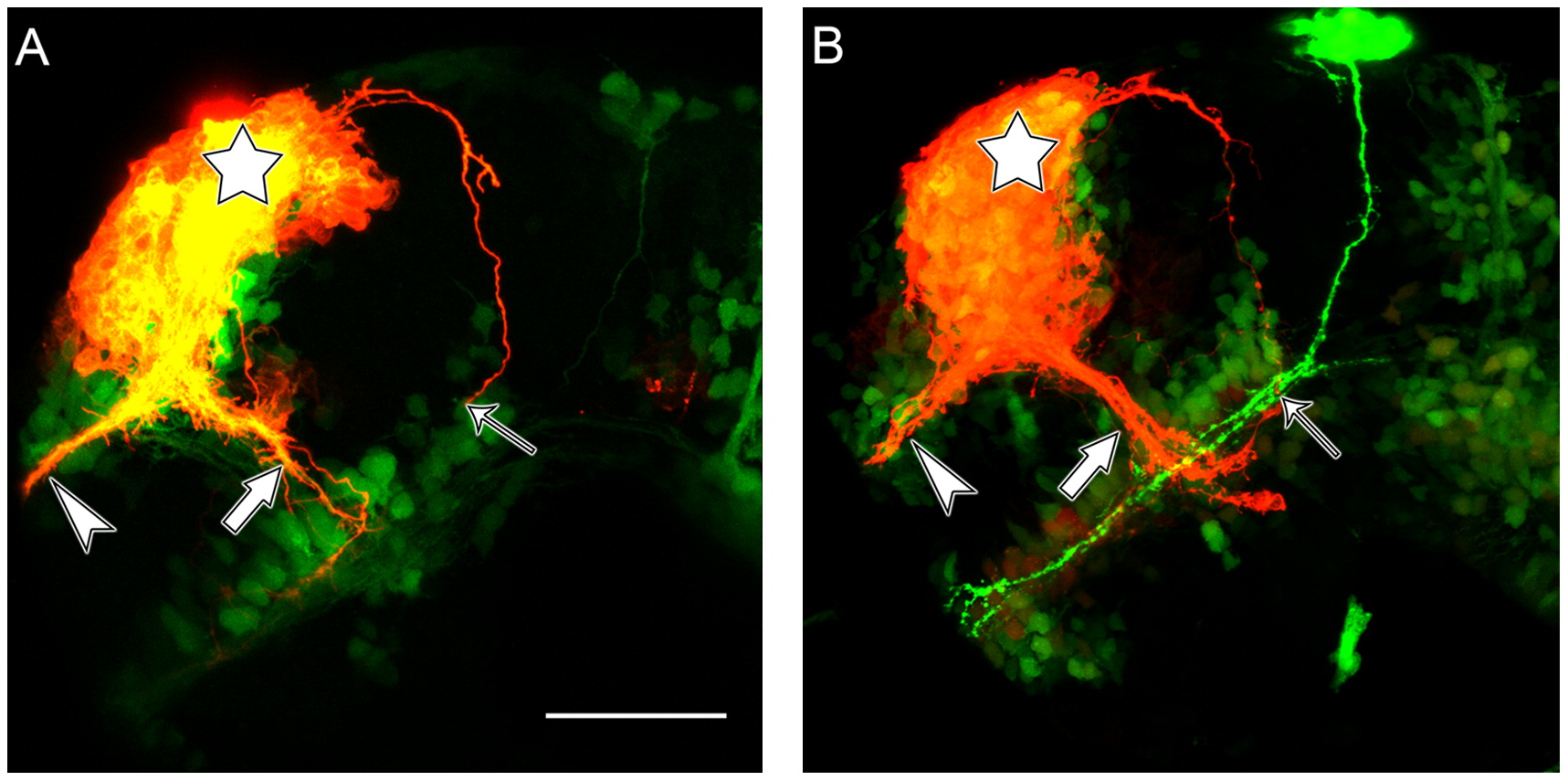

Fig. 7 Tracing the EDAB to the ventrorostral diencephalic cluster. (A) HuC:kaede brain. (B) HuC:kaede/Foxd3:GFP brain. DiI labelling is represented in red and the kaede/GFP fluorescence in green. The star indicates the site of DiI injection, the arrowhead indicates the anterior commissure, the large arrow is the supraoptic tract and the thin arrow points at the identifiable end of the EDAB. In (B) the DVDT trajectory is clearly depicted by GFP fluorescence in green. Scale bar=50 μm.
