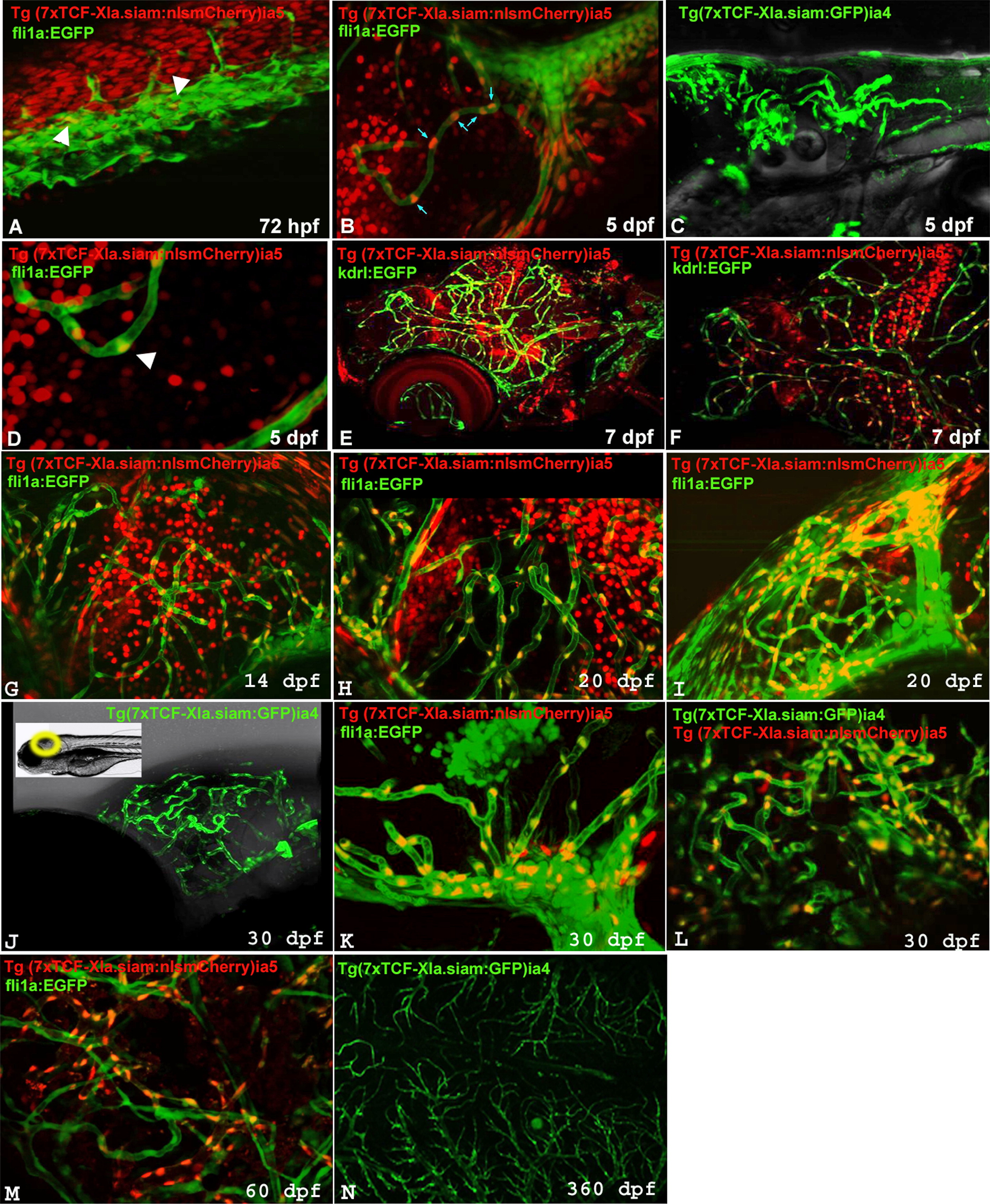

TCFsiam transgene expression in the CNS endothelial compartment during larval, juvenile and adult stages. (A) Confocal image of the trunk vessels in a representative 72 hpf Tg(fli1a:EGFP)^y1/ Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 fish. Few endothelial cells are positive for the transgene (arrowheads in A). (B) Confocal image of the CNS vessels in a 5 dpf representative Tg(fli1a:EGFP)^y1/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 fish. Several endothelial fli1a:EGP expressing cells are positive for the Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 transgene (highlighted by light blue arrows). (C) Confocal Z-stack projection of a 5 dpf Tg(7xTCF-Xla.Siam:GFP)^ia4, showing the targeted labeling of the cerebral vascular network. (D) Magnification of a CNS blood vessel of a representative 5 dpf Tg(fli1a:EGFP)^y1/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 larva. A double positive endothelial cell is marked by a arrowhead. (E,F) Confocal Z-stack projection of a representative 7 dpf Tg(kdrl:EGFP)^s843/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5, showing a perfect localization of the TCFsiam signal in the CNS endothelial compartment. In F a higher magnification of (E) is shown. (G) Confocal Z-stack projection in the midbrain area of a representative 14 dpf Tg(fli1a:EGFP)^y1/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 fish. (H,I) Confocal Z-stack projection of a representative 20 dpf Tg(fli1a:EGFP)^y1/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 fish in the midbrain area (H) and in the forebrain area (I), showing strong labeling of the brain vessels in the transgenic reporter fish. (J) Confocal projection a 30 dpf fish brain showing localized expression of the Tg(7xTCF-Xla.Siam:GFP)^ia4 transgene in the vascular compartment of the brain. A small inset illustrates the area analyzed by confocal microscopy in the living fish. (K, L, M) Confocal Z-stack projection of a representative 30 dpf (K) and 60 dpf (M) Tg(fli1a:EGFP)^y1/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 and 30 dpf (L) Tg(7xTCF-Xla.Siam:GFP)^ia4/Tg(7xTCF-Xla.Siam:nlsmCherry)^ia5 fish showing a persistent expression of the TCFsiam transgene in the brain vascular network. (N) Confocal acquisition of a whole fixed brain from a one year old fish demonstrating long-term expression of the Tg(7xTCF-Xla.Siam:GFP)^ia4 transgene in CNS vascular network.
