ZFIN Image: Lin et al., 2012, Fig. S4


Figure Caption

Fig. S4

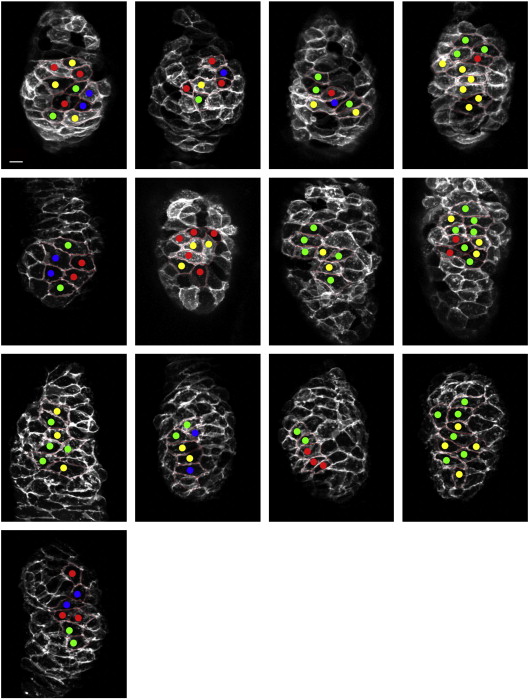

Spatial distribution of behavioral heterogeneity in wea morphant hearts. Images display the entire collection of wea morphant hearts examined by live imaging. As in Fig. S3, lateral views, oriented with the arterial pole at the top, depict Tg(myl7:mkate-caax) expression in each ventricle at 40 hpf. Dots indicate all of the examined cardiomyocytes, and each dot′s color corresponds to the observed behavior of that cell, according to the color code established in Fig. 5. Scale bar is 10 μm. Images display the entire collection of wea morphant hearts examined by live imaging. As in Fig. S3, lateral views, oriented with the arterial pole at the top, depict Tg(myl7:mkate-caax) expression in each ventricle at 40 hpf. Dots indicate all of the examined cardiomyocytes, and each dot′s color corresponds to the observed behavior of that cell, according to the color code established in Fig. 5. Scale bar is 10 μm.
