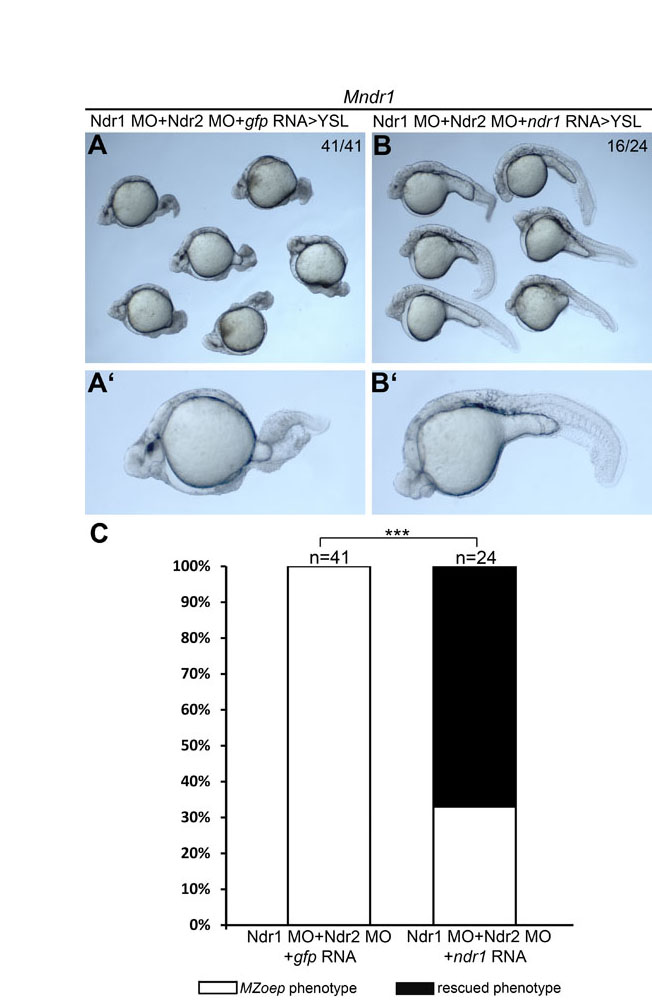

Fig. S3 The phenotype resulting from synergistic removal of maternal and extraembryonic Ndrs is rescued by extraembryonic Ndr1. (A-B′) The YSL of Mndr1 embryos was co-injected with the same combination and doses of Ndr1 MO and Ndr2 MOs as in Fig. 7, but 50 pg of gfp RNA (A,A′) or 0.5 pg ndr1 RNA (B,B′) was also injected into the YSL. Embryonic phenotypes were scored and documented at the 24-30 hpf pharyngula stage. Lateral views are shown throughout, with magnified views in A′ and B′. Fractions in A and B indicate the number of equivalent outcomes/number of embryos observed. (C) As seen in B and B′, a substantial and highly significant degree of rescue was observed. ***P<0.0005, χ2 test with Yates correction.
