Fig. 6

ID
ZDB-IMAGE-100913-12
Source
Figures for May-Simera et al., 2010
Figure Caption

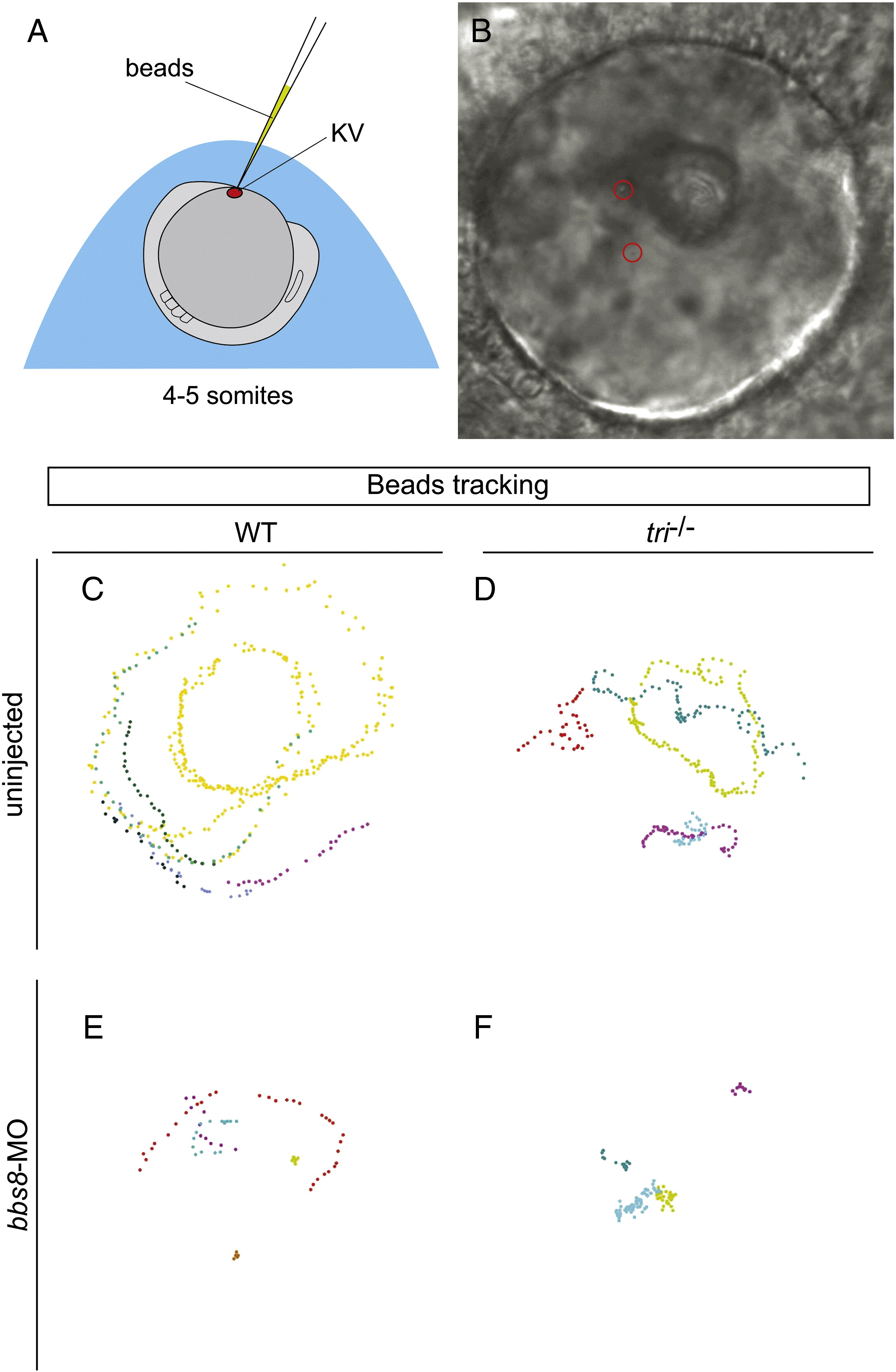

Fig. 6 Bbs8 and Vangl2 are required for normal fluid flow in the Kupffer′s vesicle. A) Schematic representation of the site of bead injection into the KV for fluid flow analysis. B) Bright field image of the KV with injected beads (red circles). C-F) Tracked bead movements in live bbs8-MO injected tri embryos at 4–5-somite stages. C) A constant anti-clockwise circular movement as seen from the dorsal side was observed in WT embryos. D, E) Bead movement was disrupted in both bbs8-morphants and tri-/- mutants. F) Abrogation of both vangl2/tri and bbs8 abolishes this bead movement completely.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 345(2), May-Simera, H.L., Kai, M., Hernandez, V., Osborn, D.P., Tada, M., and Beales, P.L., Bbs8, together with the planar cell polarity protein Vangl2, is required to establish left-right asymmetry in zebrafish, 215-225, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
