Fig. S5

ID
ZDB-IMAGE-100830-12
Source
Figures for Hsu et al., 2010
Figure Caption

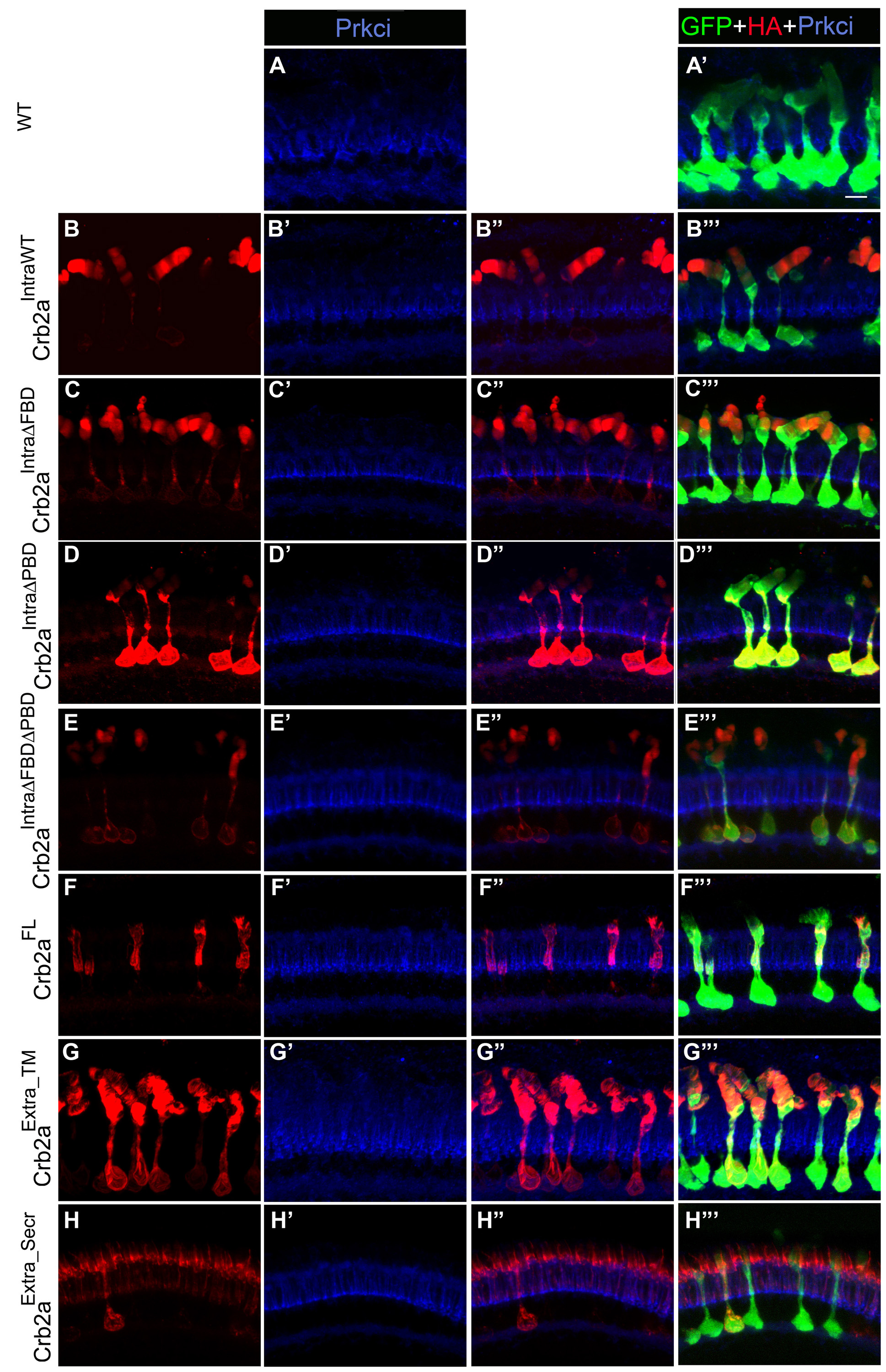

Fig. S5 Effects of Crb2a construct expression on Prkci localization. (A-H″′) Confocal z-projection of 6 d photoreceptor layer labeled with anti-HA (red), anti-Prkci antibodies (blue) and anti-GFP labeling (green). (A-A″) Wild-type photoreceptor rods. (B-B″′) Crb2aIntraWT transgenic rods. (C-C″′) Crb2aIntraΔFBD transgenic rods. (D-D″′) Crb2aIntraΔPBD transgenic rods. (E-E″′) Crb2aIntraΔFBDΔPBD transgenic rods. (F-F″′) Crb2aFL transgenic rods. (G-G″′) Crb2aExtra_TM transgenic rods. (H-H″′) Crb2aExtra_Secr transgenic rods. Scale bars, 5 μm.
