Fig. 2

ID
ZDB-IMAGE-091016-5
Source
Figures for Ebarasi et al., 2009
Figure Caption

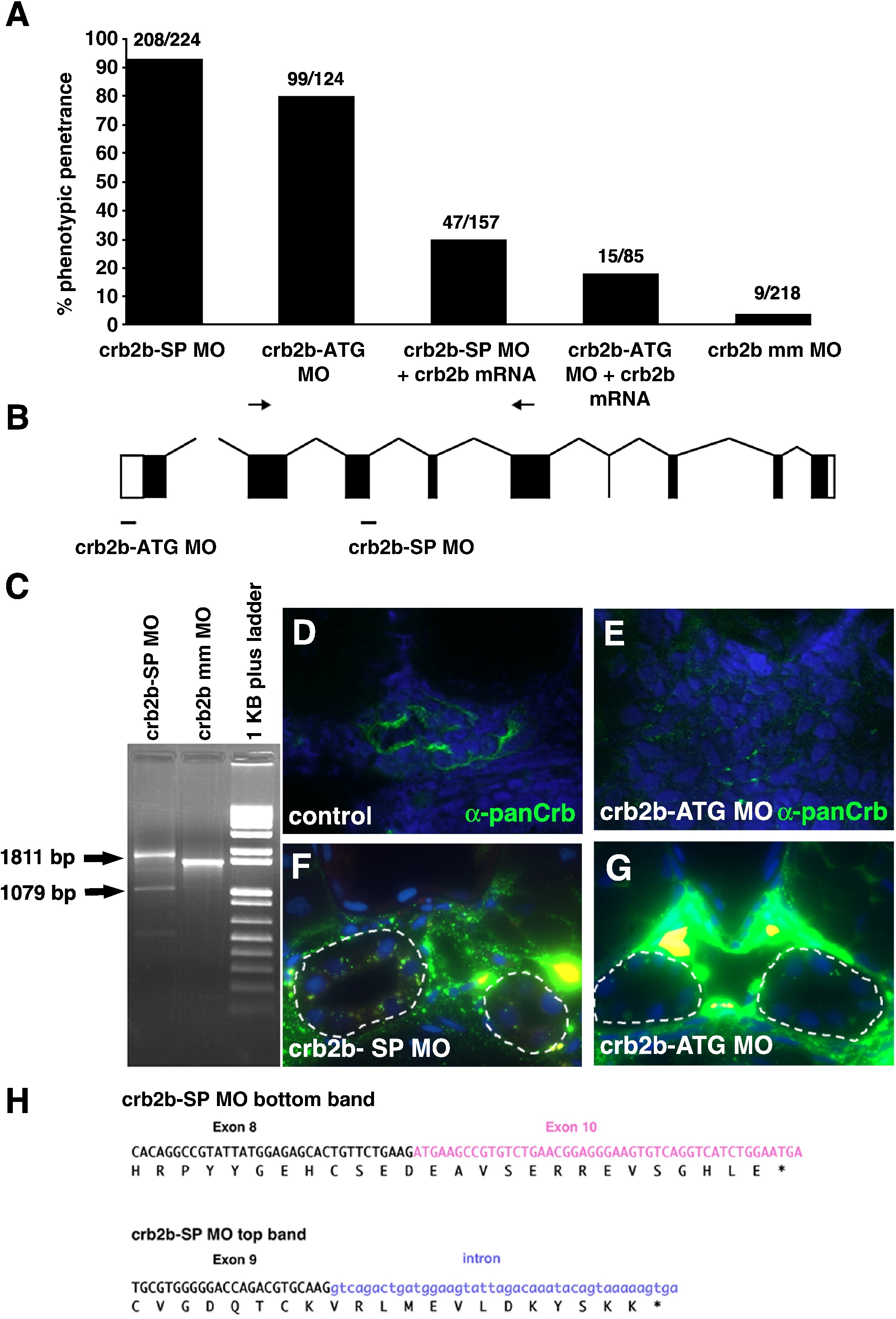

Fig. 2 Morpholino knockdown. (A) Penetrance of morphant phenotypes using crb2b-ATG and crb2b-SP morpholinos. Co-injection with wildtype crb2b mRNA rescues the morphant defects. A mismatch morpholino based on crb2b-SP does not induce pericardial edema or pronephric cyst phenotypes. Sample sizes are shown above the bars. (B) Exon structure of crb2b and position of crb2b-ATG and crb2b-SP morpholinos. PCR primers are shown (arrows). (C) RTPCR of crb2b mRNA from mismatch control injected embryos yields the expected 1569 bp product. RTPCR of crb2b mRNA from crb2b-SP embryos yields an expected 1079 bp band, resulting from the deletion of Exon 9, and an additional product of 1811 bp. Glomerular α-panCrb staining observed in mismatch injected embryos (D) is lost in embryos injected with crb2b-ATG (or crb2b-SP) (E). (F, G) crb2b-ATG and crb2b-SP induce glomerular permeability defects as assayed by the re-uptake of 500 kDa FITC dextran dye into pronephric tubule endosomes. (H) The lower 1079 band results from the deletion of exon 9 and the fusion of exon 8 (black) to exon 10 (pink). The 1811 bp upper band resulted from the insertion of 242 bp of intronic sequences (blue) downstream of the morpholino target sequence. Translation of intronic sequences results in premature stop codons (asterisk).
