Fig. 8

ID
ZDB-IMAGE-090602-12
Source
Figures for Rothschild et al., 2009
Figure Caption

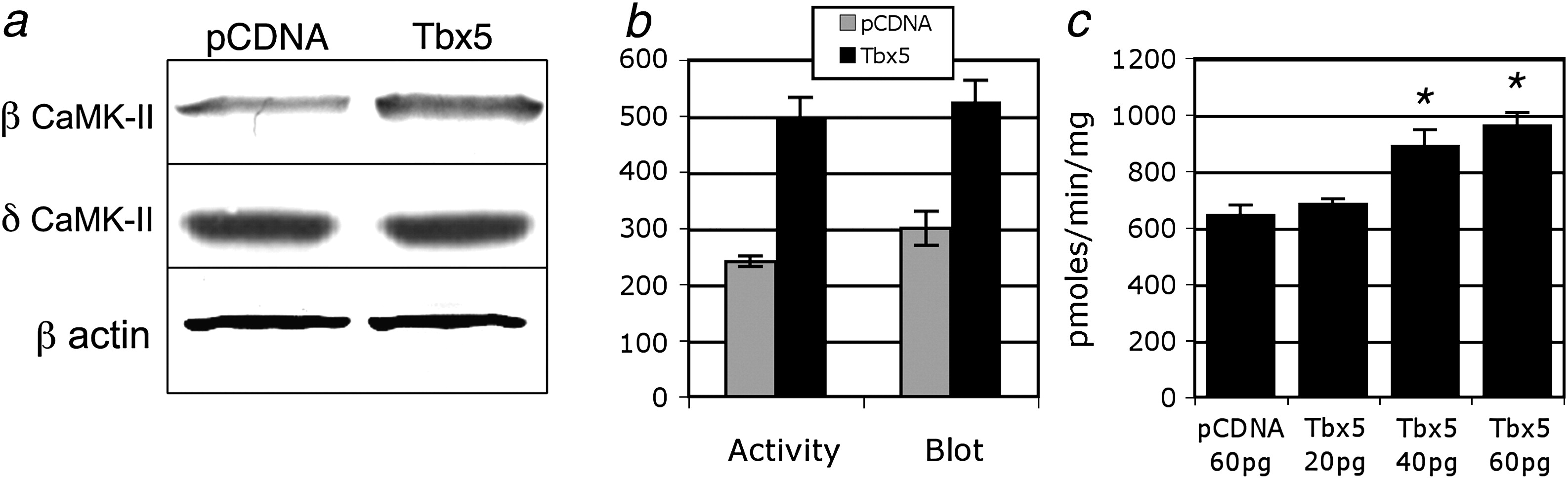

Fig. 8 Tbx5 promotes β2 CaMK-II Expression. (a) β CaMK-II, δ CaMK-II and actin immunoblots of 10 μg NIH/3T3 lysate from cells which had been transfected with Tbx5-pCDNA3 or empty pCDNA3 vector. (b) CaMK-II specific activity (in pmol/min/mg) and integrated blot densities (normalized) from NIH/3T3 cells were averaged from four separate transfections and are shown with standard deviations. (c) Zebrafish embryos were injected with the indicated amount of pCDNA3 or Tbx5-pCDNA3 and activity assays performed at 72 hpf. Asterisks indicate P < 0.005.
