ZFIN Image: Willett et al., 1997, Fig. 5


Figure Caption

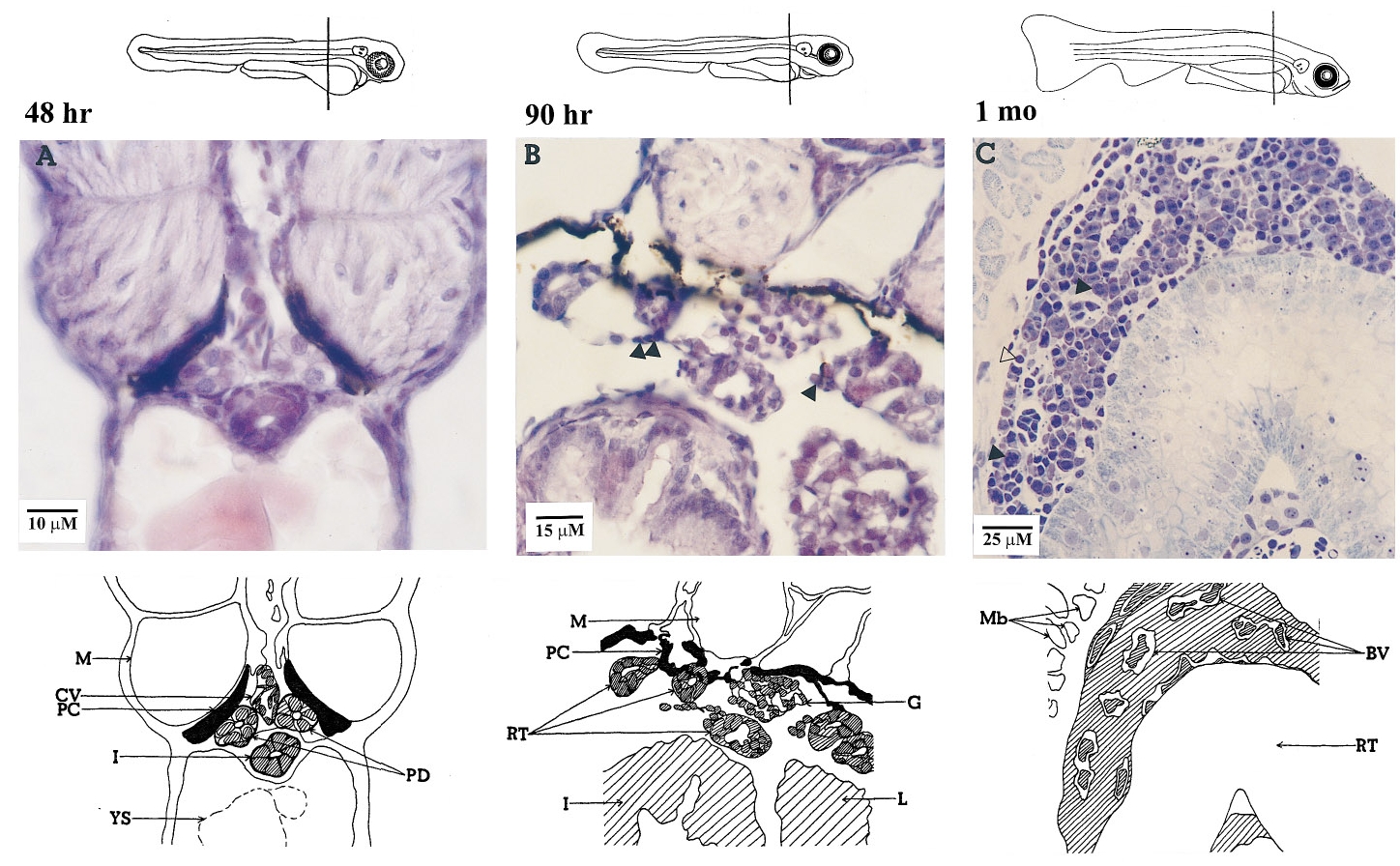

Fig. 5 Histological development of zebrafish pronephros. (A) 48 hr, pronephric ducts associated with caudal vein. (B) 90 hr, renal tubules and glomerulae are visible; isolated cells resembling either primitive hematopoietic cells or lymphocyte-like cells appear (▲). (C) 1 month, hematopoietic tissue occupies the space between large renal tubules and blood vessels. The diagram above the photo shows the plane of each section and the sketch below identifies the organs. Photos A and B are of paraffin sections stained with hematoxylin and eosin Y; photo C is of a plastic section stained with toluidine blue. BV, blood vessel; CV, caudal vein; G, glomerlus; I, intestine; L, liver; M, muscle; Mb, muscle bundles; PC, pigment cell; PD, pronephric duct; RT, renal tubule; YS, yolk sac.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 182(2), Willett, C.E., Zapata, A.G., Hopkins, N.A., and Steiner, L.A., Expression of zebrafish rag genes during early development identifies the thymus, 331-341, Copyright (1997) with permission from Elsevier. Full text @ Dev. Biol.
